Enveloping Slewing Drive SE5 Overview

Enveloping Slewing Drive SE5 Overview

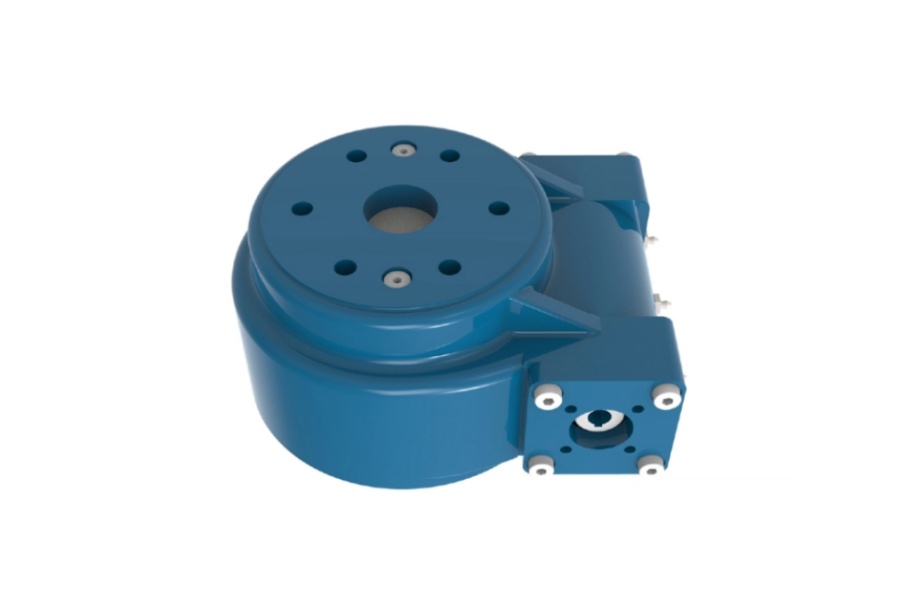

What is Enveloping Slewing Drive SE5

Enveloping Slewing Drive SE5 is an advanced integrated transmission component composed of key parts such as a base, worm and worm wheel. It adopts a fully sealed protection design, which enables it to withstand axial, radial and tilting moments simultaneously, and also provides a self-locking function to enhance safety. With its compact structure and high integration, it can effectively transmit power and realize precise rotation in mechanical systems. The design of this slewing drive takes into account the needs of various complex working conditions, ensuring stable operation even in harsh environments.

Safety Factor Selection for Slewing Drive Under Different Working Conditions

In light-load and stable working conditions, such as some light-duty conveying equipment, the safety factor of the slewing drive can be appropriately lower, generally ranging from 1.2 to 1.5. Because the load is small and the working environment is relatively stable, the probability of excessive stress on the slewing drive is low, so a lower safety factor can meet the safety requirements while reducing costs.

In medium-load working conditions, like general engineering machinery in normal operation, the safety factor should be set between 1.5 and 2.0. At this time, the load is moderate, and there may be certain fluctuations in the working process. A medium safety factor can ensure that the slewing drive can cope with these fluctuations and avoid failures caused by occasional overloads.

For heavy-load working conditions, such as large-scale lifting equipment and mining machinery, the safety factor must be set higher, usually 2.0 to 3.0 or even higher. These working conditions involve large loads, and once a failure occurs, the consequences are serious. A high safety factor can provide a sufficient margin to ensure the safe operation of the slewing drive.

In harsh environment working conditions, such as high temperature, low temperature, humidity, corrosion or dust, the safety factor should also be increased appropriately, generally 1.5 to 2.5. The harsh environment will accelerate the wear and aging of the slewing drive components, reducing their performance. A higher safety factor can offset the impact of the environment on the service life and performance of the slewing drive.

For precision control working conditions, such as precision machine tools and automated production lines, the safety factor is usually between 1.2 and 1.8. While ensuring the safety of the slewing drive, it is also necessary to consider the accuracy of rotation. An excessively high safety factor may increase the weight and volume of the slewing drive, affecting the precision of control.

Features of Enveloping Slewing Drive SE5

Enveloping Slewing Drive SE5 has a high output torque of 600 N.m, which enables it to provide sufficient power in various mechanical transmission systems, meeting the needs of medium and light load transmission.

It has a strong tilting moment resistance of 2800 N.m, which allows it to maintain stable operation when subjected to tilting forces, ensuring the safety and reliability of the mechanical system.

The holding torque of Enveloping Slewing Drive SE5 reaches 5000 N.m, which can effectively prevent the reverse rotation of the load when the power is cut off, enhancing the safety of the equipment during shutdown or standby.

With a static axial rating of 45 kN and a static radial rating of 22 kN, it can bear large axial and radial loads, adapting to various complex load conditions in industrial applications.

The dynamic axial rating is 14.4 kN and the dynamic radial rating is 11.1 kN, ensuring stable performance during dynamic operation and reducing the impact of dynamic loads on the slewing drive.

It has a gear ratio of 62:1, which can achieve precise speed reduction and torque amplification, meeting the requirements of different speed and torque in mechanical transmission.

The tracking precision is ≤0.2°, and for SEA5/SEB5/PE5, it is ≤0.08/0.12°, ensuring high precision in rotation control, which is very important for equipment that requires precise positioning.

Weighing only 16 kg, it has a compact structure and light weight, which is convenient for installation and reduces the overall weight of the mechanical equipment, saving installation space.

The fully sealed protection design makes it have good dustproof, waterproof and anti-corrosion performance, suitable for use in harsh environments such as outdoor and humid places.

The self-locking function enhances the safety of the equipment, preventing accidents caused by unexpected rotation of the load.

Applications of Enveloping Slewing Drive SE5

In construction machinery, such as excavators and cranes, Enveloping Slewing Drive SE5 is used to drive the rotation of the working device. Its high output torque and strong tilting moment resistance ensure that the working device can rotate stably and reliably when lifting and moving heavy objects, improving the work efficiency and safety of construction machinery.

In solar power generation systems, it is used in solar tracking devices. The high tracking precision of Enveloping Slewing Drive SE5 enables the solar panel to accurately track the sun's movement, maximizing the absorption of solar energy and improving the power generation efficiency of the system.

In port machinery, such as gantry cranes and container cranes, it is used to drive the rotation of the crane boom and spreader. Its ability to bear large axial and radial loads and strong dynamic performance ensure that the port machinery can work stably under heavy load and high-frequency operation conditions, ensuring the smooth progress of port loading and unloading operations.

In agricultural machinery, such as rotary tillers and harvesters, Enveloping Slewing Drive SE5 is used to drive the rotation of the working parts. Its compact structure and light weight are suitable for installation on agricultural machinery with limited space, and its reliable performance ensures the normal operation of agricultural machinery in the field.

In medical equipment, such as CT machines and X-ray machines, it is used to adjust the angle and position of the equipment. The high precision and stable performance of Enveloping Slewing Drive SE5 ensure the accuracy of medical equipment during examination and treatment, improving the quality of medical services.

In industrial robots, it is used to drive the rotation of the robot arm. Its precise control and high torque output enable the robot arm to perform various complex operations accurately and efficiently, improving the automation level of industrial production.

Factors Influencing the Price of Enveloping Slewing Drive SE5

Raw material costs are an important factor affecting the price of Enveloping Slewing Drive SE5. The main raw materials include metal materials such as steel and copper. Fluctuations in the prices of these raw materials will directly affect the production cost of the slewing drive. When raw material prices rise, the production cost increases, and the price of Enveloping Slewing Drive SE5 may also rise accordingly; conversely, when raw material prices fall, the product price may decrease.

Production process and technology level will also affect the price. Advanced production processes and high-tech levels can improve production efficiency, reduce production costs, and improve product quality. Enveloping Slewing Drive SE5 produced with advanced technology may have higher performance and reliability, so its price may be higher than that of products with backward technology. At the same time, the investment in research and development of new processes and technologies will also be included in the product cost, affecting the final price.

Market supply and demand relationship is another key factor. When the market demand for Enveloping Slewing Drive SE5 is greater than the supply, the price tends to rise; when the supply exceeds the demand, the price may fall. In addition, the competition in the market also affects the price. If there are many suppliers of similar products, the competition is fierce, and suppliers may lower prices to attract customers; on the contrary, if there are few suppliers with strong competitiveness, the price may be relatively high.

Product specifications and customization requirements will lead to price differences. Enveloping Slewing Drive SE5 has different specifications and parameters, and products with different specifications have different production costs, so the prices are also different. In addition, if customers have special customization requirements, such as special materials, special performance parameters, etc., the production process will be more complicated, the production cost will increase, and the price will be higher than that of standard products.

Brand influence and after-sales service also affect the price. Well-known brands usually have higher brand value and better product quality assurance, so their products may be priced higher. At the same time, perfect after-sales service, such as product warranty, maintenance and technical support, will also increase the cost of the supplier, which is reflected in the product price.

Supplier of Enveloping Slewing Drive SE5

LYRADRIVE is a professional supplier of Enveloping Slewing Drive SE5, committed to providing high-quality and reliable transmission components. With rich experience in the industry, it ensures that the products meet the needs of various customers through strict quality control and advanced production technology, and provides good after-sales service to win the trust of customers.
