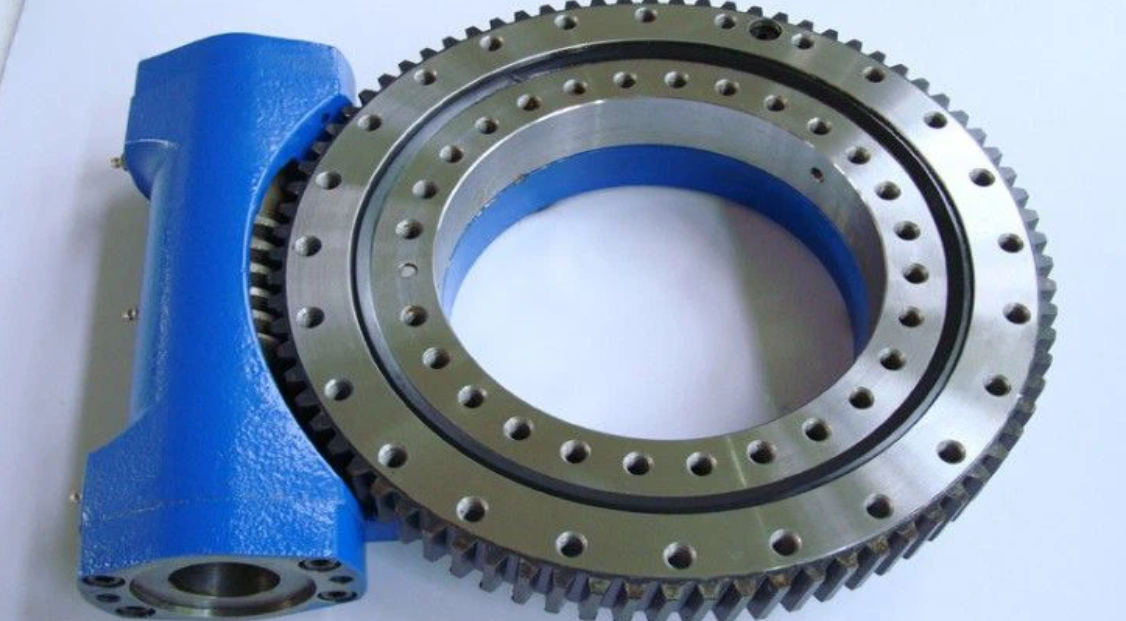

Characteristics and Applications of Open Slew Drive

What is a Slew Drive?

A slew drive is a compact gearbox mechanism designed to handle heavy loads while enabling precise rotational motion. At its core, it consists of a slewing bearing integrated with a worm gear drive system. The slewing bearing, as the core component, allows the drive to withstand large axial forces, radial forces, and tilting moments simultaneously.

Feature	Open Slew Drive	Standard/Enclosed Slew Drive
Structure	Open base design with partially exposed components	Fully enclosed, sealed housing
Environmental Protection	Lower protection against dust, rain, and corrosion	High ingress protection suitable for harsh conditions
Lubrication	Typically requires manual, frequent greasing	Often uses oil-bath or sealed-for-life lubrication
Maintenance	Requires regular inspection and re-lubrication	Lower maintenance needs with longer service intervals
Typical Applications	Less demanding environments, intermittent use	Continuous duty in harsh outdoor conditions
Cost	More economical due to simpler design	Higher initial investment

Features and Benefits of Open Slew Drives

Open slew drives offer several distinct advantages that make them the preferred choice for many applications:

Cost-Effectiveness
The simpler, open construction makes these drives more economical than fully enclosed alternatives, providing an excellent balance of performance and value.

Design Simplicity
The open base design allows for straightforward integration into various machinery. Engineers can easily inspect gear mesh and bearing condition visually during operation.

Easy Maintenance
When used in suitable conditions (relatively clean environments with intermittent operation), maintenance is straightforward. Parts are accessible, and replacement costs remain reasonable.

Compact Load Handling
Despite the open design, these drives retain the fundamental benefit of all slew drives: the ability to handle substantial axial, radial, and moment loads within a compact footprint.

Power Source Flexibility
As noted in our reference article, either electric motors or hydraulic motors can serve as power sources, enabling both clockwise and counterclockwise rotation.

How Does an Open Slew Drive Work?

An open slew drive operates through a simple yet effective mechanism:

Power Input
A power source—either an electric motor or a hydraulic motor—connects to the input shaft, which drives the worm.

Worm and Gear Interaction
The rotating worm (which resembles a screw) engages with the teeth on the slewing ring's gear. This worm gear interaction provides significant speed reduction. The high-speed motor input is converted into low-speed, high-torque output, enabling the controlled rotation of heavy loads.

Bi-Directional Capability
The design allows for smooth, continuous rotation in both clockwise and counterclockwise directions, providing full 360° positioning capability.

Load Support
While the worm gear provides the driving force, the integrated slewing bearing simultaneously supports the applied loads—axial, radial, and tilting moments—ensuring stable and smooth rotation under stress.

Application Areas of Open Slew Drives

Open slew drives are widely used in applications where operating conditions are relatively moderate and cost considerations are important:

Mobile Machinery

Aerial Work Platforms: For precise positioning of worker buckets in cherry pickers and boom lifts
Truck Cranes: Enabling smooth rotation of crane booms for material placement

Construction Equipment

Small to Medium Cranes: Where full environmental sealing is not the primary concern
Material Handling Equipment: For rotating platforms and manipulators

Industrial Applications

Manufacturing Equipment: In controlled factory environments
Positioning Systems: For industrial manipulators and robotic arms

Renewable Energy

Solar Tracking Frames: Orienting solar panels to follow the sun, though enclosed drives are often preferred for long-term outdoor reliability

General Automation

Various automation tasks in clean, indoor environments where dust and moisture are not present

Key Factors for Choosing Open Slew Drives

Selecting the right open slew drive requires careful consideration of several factors:

Load Requirements
Calculate the maximum axial forces, radial forces, and tilting moments the drive must withstand during operation. Accurate load determination is essential for proper sizing.

Duty Cycle and Speed
Assess how frequently the drive will operate and at what rotational speeds. Open drives are best suited for intermittent rather than continuous duty applications.

Environmental Conditions
This is perhaps the most critical factor. Evaluate exposure to dust, water, chemicals, and temperature extremes. Open drives are appropriate only for relatively clean, dry environments.

Precision Requirements
Determine the required positioning accuracy. Different manufacturing tolerances affect gear backlash, which impacts precision.

Power Source
Decide between electric motor, hydraulic motor, or manual operation based on your available power systems and control requirements.

Mounting Configuration
Consider the available space and mounting interface requirements for seamless integration into your equipment.

How to Select an Open Slew Drive?

Follow these practical steps to select the right open slew drive for your application:

Step 1: Define Your Application Profile
Clearly document the application type, movement patterns, operating environment, and duty cycle expectations.

Step 2: Perform Load Calculations
Complete a thorough load analysis to determine the exact capacity requirements. Calculate all forces and moments that will act on the drive.

Step 3: Determine Gear Ratio and Torque
Based on your required output speed and available input motor speed, calculate the necessary gear ratio and output torque.

Step 4: Select Appropriate Size
Consult manufacturer specifications to identify models that meet your load and torque requirements. Consider dimensions, weight, and mounting hole patterns.

Step 5: Consider Optional Features
Determine if you need additional features such as limit switches, position encoders, or manual override capabilities.

Step 6: Verify Environmental Suitability
Confirm that the selected open drive is appropriate for your specific operating environment.

How to Maintain Open Slew Drives?

Proper maintenance is essential for ensuring long service life and reliable performance:

Regular Lubrication
Establish and follow a strict lubrication schedule. Clean and apply fresh grease to exposed gear teeth and bearing raceways through designated grease fittings. The frequency depends on usage intensity and environmental conditions.

Periodic Inspection
Regularly examine the drive for signs of wear, pitting on gear teeth, unusual noise during operation, or excessive backlash. Early detection prevents major failures.

Bolt Torque Checks
Periodically verify that all mounting bolts are tightened to the manufacturer's specified torque values. Loose bolts can cause misalignment and accelerated wear.

Cleaning
Keep the gear area free from debris, dirt, and contaminated grease. Built-up contaminants can act as abrasives, accelerating component wear.

Environmental Protection
Where possible, implement simple protective measures such as rubber shields to deflect debris without fully enclosing the drive.

LyraDrive: Your Partner for Custom Slew Drive Solutions

LyraDrive is a professional manufacturer specializing in slew drives and slewing bearings. With extensive experience across multiple industries, we design and manufacture a comprehensive range of products including worm gear slew drives, spur gear slew drives, and precision slewing bearings.

Our solutions serve diverse sectors including construction, engineering, mining, marine, chemical, military, wind turbine, medical equipment, and many other industries. This broad experience gives us unique insights into the varied requirements of different applications.

Our Customization Capabilities

We understand that every application has unique requirements. That's why we maintain a professional technical team dedicated to accepting and executing special customizations. When standard catalog products don't perfectly match your needs, we work with you to develop the ideal solution.

Advanced 3D Analysis for Precision Engineering

When you partner with LyraDrive, you benefit from our advanced engineering capabilities. Customers can provide sample data and relevant drawings of their specific requirements, and we put our 3D technology to work for comprehensive analysis.

Here's how our process works:

1. Share Your Requirements: You provide us with your application parameters, load data, mounting constraints, and any existing drawings or specifications.

2. Comprehensive 3D Analysis: Our technical team utilizes advanced 3D modeling and simulation software to thoroughly analyze your application. We examine load distribution, stress points, gear engagement, and integration requirements with your existing systems.

3. Design Optimization: Based on this analysis, we optimize the drive design specifically for your application. We can simulate real-world operating conditions to ensure the final product will perform exactly as needed.

4. Precise Manufacturing: Once the design is finalized, our manufacturing team produces your custom slew drive to exact specifications, ensuring perfect fit and optimal performance.

5. Quality Assurance: Every custom drive undergoes rigorous testing before delivery, confirming it meets all performance criteria.

This comprehensive approach ensures that the final product we deliver not only meets but exceeds your expectations, integrating seamlessly with your equipment and delivering reliable performance throughout its service life.

Whether you need a standard open slew drive or a fully customized solution, LyraDrive has the expertise and capabilities to deliver. Share your requirements with us, and let our technical team put advanced 3D analysis to work for your application.

FAQ about Open Slew Drives

Q: What is the main advantage of an open slew drive?
A: The primary advantage is its lower initial cost compared to enclosed drives. The simpler design makes it an economical choice for applications where full environmental sealing is not required.

Q: Can an open slew drive be used outdoors?
A: Yes, but only in relatively mild conditions with minimal exposure to rain, dust, and corrosive elements. Regular maintenance is essential. For harsh outdoor environments, an enclosed drive is strongly recommended.

Q: How often should I lubricate an open slew drive?
A: Lubrication frequency depends on usage intensity and environmental conditions. For heavy use, daily or weekly lubrication may be necessary. Always follow the manufacturer's specific recommendations for your application.

Q: What is backlash and why does it matter?
A: Backlash refers to the amount of "play" or movement between the worm and gear teeth before the drive engages. It directly affects positioning precision. Open drives can be manufactured with different backlash levels to suit various application requirements.

Q: Can I replace a standard enclosed drive with an open drive?
A: Only if your application's environmental conditions and duty cycle requirements match the capabilities of an open drive. This is not a direct drop-in replacement without careful evaluation of operating conditions.

Q: What maintenance does an open slew drive require?
A: Key maintenance tasks include regular lubrication, periodic inspection for wear, bolt torque checks, and keeping the gear area clean from debris and contaminants.

Q: How long do open slew drives typically last?
A: Service life varies greatly depending on application intensity, maintenance quality, and operating environment. With proper maintenance in suitable conditions, these drives can provide many years of reliable service.
