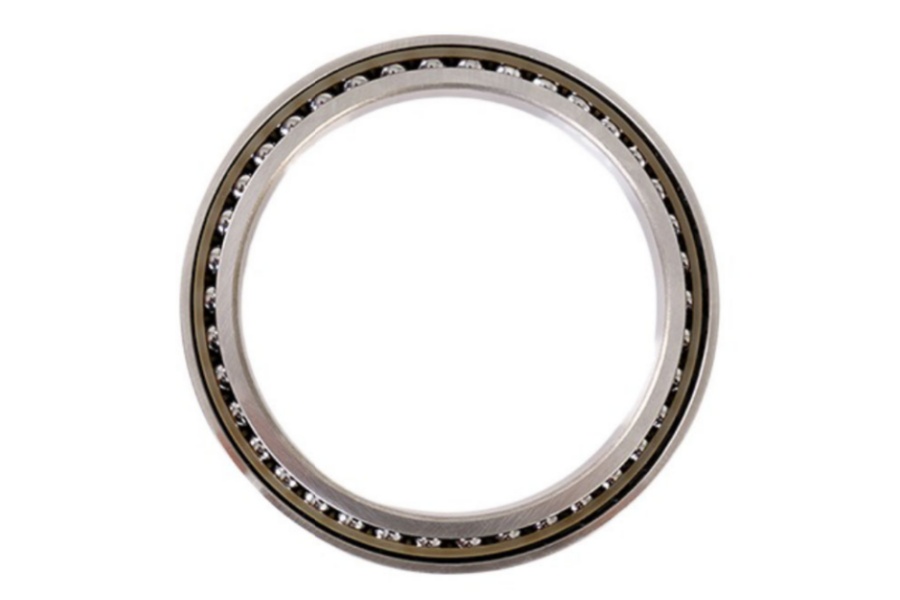

What is a Heavy load slewing bearing

Heavy load slewing bearing is a large-diameter, precision-engineered rotational bearing specifically designed to support extreme combinations of axial, radial, and moment loads while enabling controlled rotation between heavy structures. It is a fundamental structural component, far more complex than a standard bearing, acting as the pivotal heart of the world's most demanding machinery. Its construction is robust, typically consisting of hardened alloy steel inner and outer rings (one or both often featuring integrated gear teeth), high-capacity rolling elements (large-diameter balls or rollers), advanced segregation blocks or cages to maintain precise element spacing, multi-lip sealing systems to create a formidable barrier against contaminants, and lubrication channels for systematic maintenance. A Heavy load slewing bearing is engineered not merely to facilitate movement but to serve as the core load-bearing connection point in applications where failure is not an option, bearing the immense weight and dynamic forces that define heavy industry.

Causes of Slewing Bearing Failure

The failure of a heavy-duty slewing bearing is rarely a sudden event but rather the culmination of progressive damage from one or more underlying causes. Understanding these failure modes is the first step toward prevention, enabling proactive maintenance and correct operational practices to safeguard this invaluable asset.

Bearing Ring Fracture

Ring fracture is a catastrophic failure mode where one of the bearing's rings (inner or outer) cracks completely through, often resulting in a total and immediate loss of structural integrity. This severe failure typically occurs in heavily loaded applications and can be attributed to two primary root causes. The first is a fundamental design flaw, where critical dimensions are inadequate for the applied loads. This includes an excessively deep raceway groove, which thins the material at its base, or mounting holes that are positioned too close to the inner or outer diameter of the ring, creating a thin, weak section. Under extreme load, these areas become stress concentrators, leading to crack initiation and propagation until the ring severs. The second cause is substandard material quality. If the forged steel ring contains internal inclusions, impurities, micro-cracks, or other metallurgical defects from the manufacturing process, it creates a inherent weakness. Under cyclic loading, a crack will initiate at this defect and grow until it causes a sudden and complete brittle fracture, often with no prior visible warning.

Gear Tooth Fracture

Fracture of the integrated gear teeth is a common and debilitating failure that halts drive functionality. This is particularly prevalent in bearings where the teeth have undergone induction hardening. The primary cause is improper heat treatment. If the hardening process results in an excessively high surface hardness, the teeth become brittle and lose their necessary toughness. Upon encountering a shock load or even normal high stress, a tooth can snap off rather than flex. Furthermore, if the quenching process induces micro-cracks at the tooth root or surface, these cracks will rapidly propagate under load, leading to fracture. Beyond material processing, improper installation is a major contributor. Incorrect meshing between the slewing bearing's gear and the drive pinion—whether the backlash is too tight, too loose, or the axes are misaligned—creates abnormal contact stresses. Instead of the load being distributed across the full tooth face, it concentrates on a small edge or point, leading to pitting, spalling, and ultimately, tooth breakage.

Raceway Hardening Layer Spalling

Spalling is a surface fatigue failure where fragments of the hardened raceway surface flake off, creating visible pits and craters. This failure is almost exclusively traced back to deficiencies in the raceway's heat treatment process. The hardened surface layer must have a sufficiently high and uniform hardness to resist the immense contact pressures from the rolling elements. If the surface hardness is too low, or if there is a soft spot, the rolling elements will cause plastic deformation in that area. This creates microscopic cracks just below the surface. With each revolution, these cracks grow and eventually connect, forcing a flake of material to detach. The problem is exacerbated when there is a significant hardness mismatch, such as rolling elements that are much harder than the raceway. The characteristic appearance is of pitted, uneven surfaces with sharp edges, and failure often initiates at the transition zone between the fully hardened area and the softer "soft zone" of the ring.

Rolling Element Damage

The failure of the rolling elements themselves—balls or rollers—through cracking, brinelling, or complete shattering is a direct consequence of inferior quality. High-quality rolling elements are manufactured from clean, homogenous steel and undergo rigorous heat treatment to achieve an optimal balance of surface hardness and a tough, ductile core. The use of substandard or counterfeit rolling elements made from impure steel or with improper heat treatment leads to a lack of durability. Under heavy load, these elements cannot withstand the cyclic Hertzian contact stresses. Internal voids or inclusions act as failure initiation points, leading to cracks that cause pieces to break off (spalling) or, in extreme cases, the entire element to fracture catastrophically. This failure rapidly destroys the raceways and can lead to a complete seizure of the bearing.

Raceway Wear

Abrasive wear of the raceway surfaces is a progressive but preventable failure caused by two interlinked factors: seal failure and lubrication failure. The first mechanism is contamination ingress. The primary role of the bearing's seals is to create a barrier against abrasive contaminants like dust, sand, and grit. If these seals become damaged, worn, or degraded over time, they allow these particles to enter the raceway. Once inside, the contaminants mix with the lubricant to form a grinding paste. With every movement, this abrasive mixture wears away at the precisely ground surfaces of both the raceways and rolling elements, leading to a loss of material, increased clearance, and eventual loss of precision and function.

The second mechanism is lubrication starvation. Lubrication provides a vital protective film that separates metal surfaces, preventing direct metal-to-metal contact. In a heavy-load slewing bearing operating with insufficient or degraded grease, this protective film breaks down. The result is increased friction, excessive heat generation, and adhesive wear (smearing) as microscopic peaks of metal weld together and are torn apart. Long-term operation under these conditions leads to accelerated wear, surface scoring, and ultimately, bearing seizure. The two causes are often related; failed seals allow lubricant to become contaminated and leak out, while the absence of fresh lubricant can cause seals to dry out and crack.

Characteristics of Heavy load slewing bearing

Heavy load slewing bearings are defined by a set of formidable characteristics engineered for extreme duty. Their paramount feature is the unparalleled ability to handle immense combinations of axial, radial, and moment loads simultaneously within a single, integrated unit. They are manufactured from the highest grades of vacuum-degassed, through-hardened alloy steel (such as 42CrMo4) to provide a deeply hardened, wear-resistant raceway surface supported by a incredibly tough and ductile core that can absorb shock loads. Their design is inherently structural, featuring integrated gear teeth that are precision-ground and induction hardened for superior wear resistance and power transmission, along with numerous high-tensile mounting holes for direct bolting to the machine frame. Scalability is a key trait, with diameters ranging from one to several meters. Advanced multi-lip, labyrinth-style sealing systems are employed to defend against the harshest environmental contaminants, while sophisticated internal lubrication channels ensure all critical contact surfaces receive a continuous supply of high-performance grease. The internal design—be it multi-row balls or rollers—is optimized to provide the highest possible load density and structural rigidity.

Applications of Heavy load slewing bearing

The application of heavy load slewing bearings is central to the operation of the most massive machinery on earth. In the construction sector, they are the fundamental component enabling the full rotation of mining excavators, mobile cranes, tower cranes, and concrete pump booms. The renewable energy industry relies on custom-engineered mega-bearings for the yaw systems that orient wind turbine nacelles and the pitch systems that adjust blade angle. In material handling, they are the pivotal point for the massive boom movements of port container cranes and the slew functions of bucket-wheel and stacker reclaimers in mining operations. The defense sector utilizes them in turret drives for tanks and artillery. Furthermore, they are indispensable in heavy industrial applications such as ladle turrets in steel mills, which hold molten metal, and in the intricate steering and cutter-head drive systems of tunnel boring machines that dig deep underground.

What Factors Influence the Price of Heavy load slewing bearing

The price of a heavy load slewing bearing is a direct reflection of its engineered capabilities, material quality, and manufacturing complexity. The most significant cost driver is its physical size and dimensions; larger diameters and cross-sections consume exponentially more raw material. The specified load capacity is equally critical; higher ratings for axial, radial, and moment loads demand a more robust design, larger rolling elements, additional rows of elements, and the use of premium alloy steels, all drastically increasing cost. The material specification itself, including steel grade, cleanliness, and the required depth and type of heat treatment (through-hardening vs. case-hardening), contributes substantially to the base cost. Manufacturing complexity is a major multiplier; integrated precision-ground gear teeth, custom sealing solutions with specific elastomers, special mounting hole patterns, and non-standard lubrication systems all add significant machining, finishing, and assembly time. The required precision grade and certification level (e.g., for wind energy or military use) necessitate more advanced manufacturing equipment and rigorous quality control, adding further expense. Finally, purchase volume is decisive; a custom, one-off bearing for a unique machine will have a vastly higher unit cost than a standard model produced in high volume for a common equipment platform.
