Aerial Work Platform Slewing Bearing

Aerial Work Platform Slewing Bearing

What is Slewing Bearing

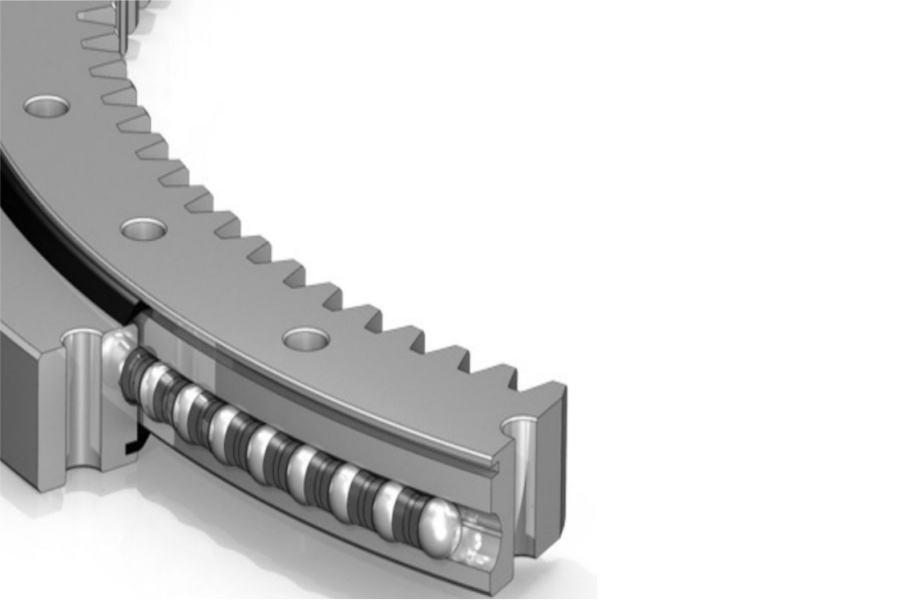

Slewing Bearing is a large-diameter rotational bearing engineered to handle combined axial, radial, and tilting moment loads simultaneously. It enables smooth 360-degree rotation between two structures, featuring robust inner and outer rings with precision raceways containing rolling elements (balls or rollers), integrated seals, and often gear teeth. As the fundamental rotational interface in heavy machinery, its reliability directly impacts equipment performance and safety.

Slewing Bearing in Aerial Work Platforms

Slewing bearings are indispensable for precise positioning and operational safety in AWPs:

Articulating Boom Lifts: Enable multi-axis rotation at the boom base and knuckle joints, allowing operators to navigate complex paths around obstacles.

Telescopic Boom Lifts: Provide the rotational base for the main boom, facilitating horizontal reach extension and precise platform placement at height.

Scissor Lifts: Power rotation on rotating models, allowing the entire platform to orient for efficient work area coverage without repositioning the base.

Vertical Mast Lifts: Enable controlled rotation of the work platform around the central mast.

Vehicle-Mounted Platforms: Allow the boom assembly to rotate relative to the truck chassis for optimal outreach.

These bearings withstand platform weight, operator/materials load, dynamic forces during movement/stabilizer deployment, and significant wind-induced moments at height. Compact design, low rotational torque, high rigidity, and exceptional sealing against environmental contaminants are paramount requirements.

Slewing Bearing Characteristics

Key features defining AWP slewing bearings:

Compact Cross-Section: Optimized height-to-diameter ratio crucial for integration within space-constrained AWP structures.

Combined Load Capacity: Engineered to handle axial (platform weight), radial (side loads during slewing/extension), and tilting moments (wind, off-center loads) simultaneously.

Smooth, Low-Torque Rotation: Precision-ground raceways ensure effortless manual or powered rotation for operator control.

Robust Sealing: Multi-lip seals or labyrinth designs with high-performance elastomers (e.g., NBR, FKM) effectively exclude dust, moisture, and jobsite debris.

Pre-Lubrication: Factory-filled with high-quality, long-life grease compatible with AWP operating temperature ranges, minimizing field maintenance.

Gearing Options: Available with internal gears, external gears, or non-geared configurations to match diverse drive mechanisms.

Low Noise Operation: Critical for operator comfort and compliance with noise regulations.

Corrosion Protection: Options like zinc-nickel plating or specialized paint systems enhance durability in harsh environments.

High Rigidity: Minimal elastic deformation under load ensures platform stability and precise positioning.

Safety-Centric Design: Manufactured and tested to meet stringent safety standards (CE, ANSI, ISO).

Slewing Bearing Applications

Beyond AWPs, slewing bearings are vital in:

Construction Machinery: Excavators, mobile cranes, concrete pumps.

Material Handling: Tower cranes, stackers/reclaimers, port cranes, rotators.

Wind Energy: Yaw and pitch drives.

Solar Energy: Solar tracker rotation.

Industrial Automation: Robotic welders, turntables, indexing tables.

Defense & Aerospace: Radar platforms, missile launchers.

Medical: CT/MRI scanner rotation.

Factors Influencing Slewing Bearing Price

Cost is determined by engineering and production factors:

Size & Load Rating: Larger diameter and higher load capacity significantly increase material and manufacturing costs.

Bearing Type & Design: Crossed roller designs typically cost more than four-point contact ball bearings. Custom features add expense.

Material & Processing: High-strength alloy steel and specialized heat treatment (case hardening) are major cost components. Corrosion-resistant materials/coatings add premium.

Manufacturing Precision: Tighter tolerances for raceways, gears, and mounting surfaces require advanced machining, increasing cost.

Sealing System: High-IP rated seals (IP69K) with specialized elastomers cost more than basic seals.

Gear Teeth: Inclusion, size (module), type (helical > spur), quality class, and hardening significantly impact price.

Mounting Features: Complexity of bolt patterns, counterbores, and pilot diameters adds machining steps.

Quality Control & Certification: Rigorous NDT (MPI, UT), load testing, and certifications (ISO, CE, ANSI) add cost.

Quantity: Unit cost decreases with higher order volumes due to economies of scale.

Brand & Origin: Premium brands command higher prices based on reputation and reliability.

Why Choose LYRADRIVE Slewing Bearings for Aerial Work Platforms

LYRADRIVE slewing bearings are engineered specifically for the demanding requirements of aerial work platforms. Our solutions prioritize space optimization with compact designs ideal for weight and height-sensitive AWP structures. Enhanced reliability is ensured through superior sealing and factory pre-lubrication, significantly reducing the need for field maintenance and downtime. We offer versatile gearing configurations (internal, external, non-geared) to seamlessly integrate with any AWP drive system. Crucially, LYRADRIVE bearings are designed and rigorously tested for safety, undergoing dynamic and static load simulations to comply with CE, ANSI, and relevant ISO standards. Each bearing undergoes individual inspection prior to shipment, guaranteeing the precision, smooth operation, and durability required for safe and productive operation at height.
