A almighty guide for Enveloping Slewing Drive SE5

A almighty guide for Enveloping Slewing Drive SE5

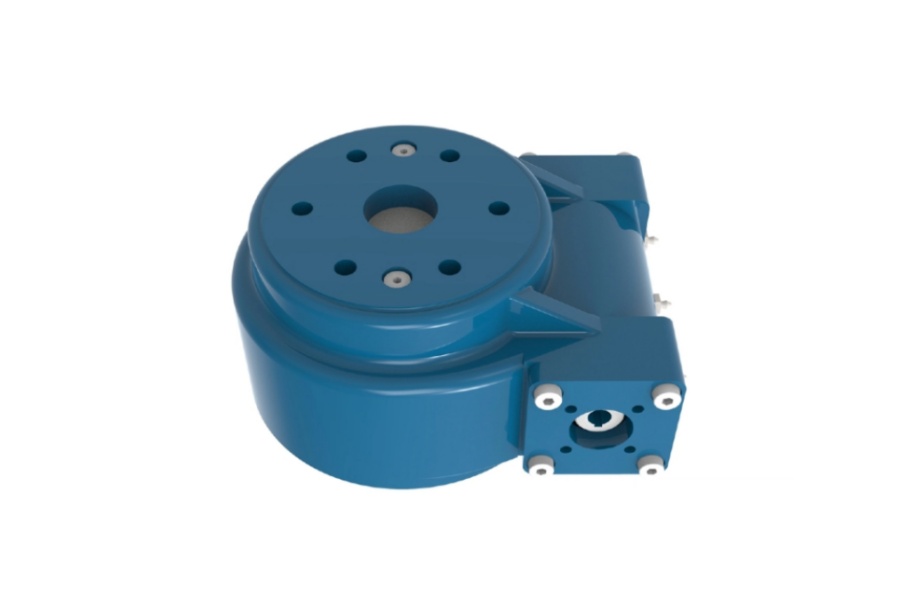

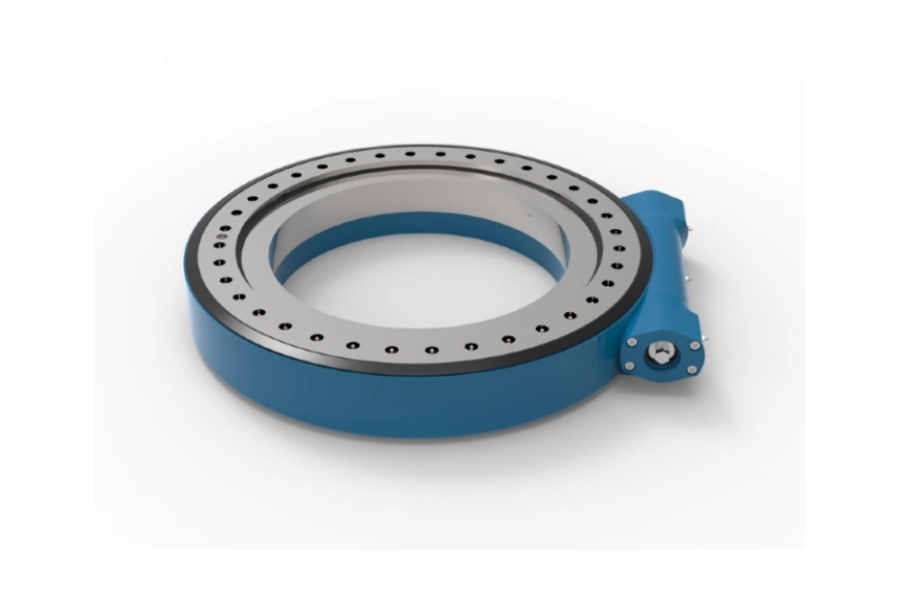

What is Enveloping Slewing Drive SE5?

Enveloping Slewing Drive SE5 is an advanced, fully integrated rotary actuator system engineered for optimal performance and longevity. It fundamentally consists of a robust housing (base), a hardened steel enveloping worm shaft, and a high-strength worm gear, typically crafted from durable materials like bronze alloy or hardened steel. The defining characteristic lies in its "enveloping" worm design. Unlike standard cylindrical worms, the enveloping worm features a concave profile that partially wraps around the circumference of the worm gear. This unique geometry significantly increases the contact area between the worm threads and the gear teeth. The SE5 series is meticulously designed as a sealed unit, offering comprehensive protection against environmental contaminants. Crucially, it is engineered to simultaneously handle substantial axial loads (forces parallel to the rotation axis), radial loads (forces perpendicular to the rotation axis), and tilting moments (forces causing overturning) while providing an inherent self-locking capability. This self-locking feature prevents reverse rotation when drive force ceases, enhancing operational safety significantly. The SE5 forms the foundation for variants like the SEA5 (modified mounting), SEB5 (different input configuration), and the precision-enhanced PE5.

Analyzing Gear Backlash in Automation Applications

Gear backlash, the slight angular movement or clearance between meshing gear teeth when direction is reversed, is a critical parameter in automation and precision motion control. While a minimal amount is essential for lubrication and preventing binding under thermal expansion or load, excessive backlash poses significant challenges. In automated systems requiring high positional accuracy and repeatability, such as robotic arms, CNC rotary tables, automated welding positioners, radar antenna positioning, or solar tracker systems, excessive backlash directly translates to positioning errors, reduced repeatability, vibration, noise, premature wear, and potential instability in closed-loop control systems. It introduces a "dead zone" where controller commands result in no immediate movement, complicating precise positioning and trajectory following. Minimizing backlash is paramount for applications demanding smooth operation, precise stopping points, accurate path following, and high dynamic response. This is where the design of slewing drives, particularly the Enveloping Slewing Drive SE5, becomes crucial. The enveloping worm geometry inherently promotes multiple tooth engagement and allows for precise adjustment during assembly to achieve and maintain minimal, controlled backlash throughout the drive's operational life. This controlled minimal backlash ensures precise motion transfer and positional stability, directly contributing to the overall accuracy and reliability of the automated equipment it drives.

Enveloping Slewing Drive SE5 Characteristics

The SE5 series distinguishes itself through a combination of robust engineering features designed for demanding environments and applications:

Exceptional Torque Capacity & Load Handling: Engineered for high power density, the SE5 delivers an impressive 600 N.m output torque, a substantial 2800 N.m tilting moment torque, and a robust 5000 N.m holding torque. Its static load ratings are 45 kN axial and 22 kN radial, while dynamic ratings are 14.4 kN axial and 11.1 kN radial, enabling it to handle significant forces in all directions simultaneously.

Enveloping Worm Design: This core feature ensures continuous multi-tooth contact (typically 4-5 teeth engaged simultaneously) between the worm and the gear. This distributes loads more evenly, drastically increasing torque transmission capability, holding torque, and overall durability while minimizing wear and allowing for precise backlash control.

Inherent Self-Locking: The high friction angle inherent in the worm gear mechanism provides reliable self-locking. This prevents unintended reverse rotation of the driven load when drive power is removed, a vital safety feature for applications like lifting platforms, inclined conveyors, or positioning stages where load reversal could be hazardous.

Superior Sealing and Protection (IP65): Featuring advanced sealing systems, the SE5 achieves an IP65 rating, offering complete protection against dust ingress and low-pressure water jets from any direction. This makes it exceptionally suitable for outdoor use, harsh industrial environments, construction sites, and maritime applications.

High Reduction Ratio (62:1): The standard 62:1 gear ratio provides significant speed reduction and torque multiplication from a compact input source (electric motor or hydraulic motor), enabling precise control of heavy loads at low rotational speeds.

Tracking Precision: Designed for accuracy, the standard SE5 achieves a tracking precision of ≤ 0.2°. For applications demanding even higher fidelity, the PE5 variant incorporates a ground worm gear, elevating precision to an impressive 0.08° to 0.12°.

Compact Design and Manageable Weight: Despite its high power, the unit maintains a relatively lightweight profile at 16 kg, facilitating easier integration into space-constrained machinery designs.

Versatile Drive Options: The SE5 is designed for seamless integration with various prime movers, including standard electric motors (often via adapter flanges) and hydraulic motors, offering flexibility in system design.

Durability and Long Service Life: Manufactured from high-quality materials (hardened steel worm, bronze alloy or hardened steel gear) and featuring optimized lubrication for life within the sealed housing, the SE5 is built for extended operational life with minimal maintenance requirements.

Enveloping Slewing Drive SE5 Applications

Leveraging its robust construction, high torque, precision, and environmental resilience, the Enveloping Slewing Drive SE5 finds widespread application across numerous sectors demanding reliable low-speed rotary motion:

Material Handling & Lifting Equipment: Integral to the rotation of crane jibs, heavy-duty industrial manipulators, automated palletizing/depalletizing systems, and the slewing function on various lifting platforms.

Construction & Earthmoving Machinery: Provides reliable rotation for excavator attachments (augers, compactors, grapples), drill rig positioning bases, and compact crane superstructures.

Aerial Work Platforms (AWPs): Essential for the precise and stable rotation of booms and platforms in scissor lifts, boom lifts (articulating and telescopic), and vertical mast lifts, ensuring operator safety and precise positioning.

Solar Energy: Powers the critical azimuth and elevation axes in solar tracker systems, maximizing energy capture by precisely aligning photovoltaic panels with the sun throughout the day. Its robustness withstands environmental stresses and wind loads.

Industrial Automation & Robotics: Used in rotary indexing tables, automated welding positioners (tilting and rotating parts), heavy-duty robot base rotation, and automated assembly line turntables requiring precise angular positioning.

Medical & Imaging Equipment: Provides smooth, precise, and stable rotation for components in advanced diagnostic imaging systems like CT scanners and radiation therapy platforms.

Defense & Aerospace: Employed in radar and satellite communication antenna positioning systems, weapon system turrets, and ground support equipment requiring reliable motion under demanding conditions.

Packaging Machinery: Powers rotating platforms in filling, capping, labeling, and inspection stations requiring precise indexing or continuous rotation under load.

Marine & Offshore: Suitable for deck crane rotation, winch positioning, and other rotary functions on vessels and offshore platforms where corrosion resistance and sealing are paramount.

Agricultural Machinery: Used in automated feeding systems, irrigation pivot drives, and specialized harvesting equipment requiring robust rotational movement.

Factors Influencing Enveloping Slewing Drive SE5 Pricing

The cost of an Enveloping Slewing Drive SE5 is not a fixed figure but is influenced by several key variables:

Material Selection & Quality: The specific grade and quality of materials used for the worm (e.g., case-hardened steel, surface treatments), worm gear (bronze alloy composition, ductile iron, hardened steel), bearings (precision grade, brand), seals, and housing significantly impact cost. Higher-grade materials for extreme durability or corrosion resistance increase price.

Manufacturing Processes & Precision: The complexity of machining the enveloping worm profile, gear cutting/hobbing, and especially the grinding process required for the high-precision PE5 variant adds substantial manufacturing cost. Tighter tolerances and superior surface finishes demanded by high-precision applications also increase production time and expense.

Customization & Modifications: While the SE5 is a standard model, modifications like special mounting flanges (SEA5), unique input shaft configurations (SEB5), custom shaft lengths or keyways, special paint or coatings (e.g., marine-grade), alternative sealing materials, or non-standard gear ratios incur additional engineering and production costs.

Volume & Order Quantity: Economies of scale apply. Larger order volumes typically result in lower unit costs due to optimized production runs and material purchasing.

Precision Level: The standard SE5 (≤0.2°) is generally less expensive than the precision-ground PE5 variant (0.08°-0.12°). The additional grinding process required for the PE5 represents a significant cost factor.

Input Drive Configuration: The specific adapter kit required to interface with a particular hydraulic motor or electric motor model can influence the final price.

Bearings and Seals: The type, quality (brand), and precision class of the internal bearings (crossed roller bearings are common) and the specification of the sealing system (standard vs. high-temp or chemical-resistant seals) affect cost.

Geographic Market & Logistics: Import duties, taxes, shipping costs, and local distributor markups vary significantly depending on the destination market.

Supplier Value-Added Services: Technical support, comprehensive warranties, local inventory availability, and after-sales service capabilities offered by the supplier can be reflected in the pricing structure.

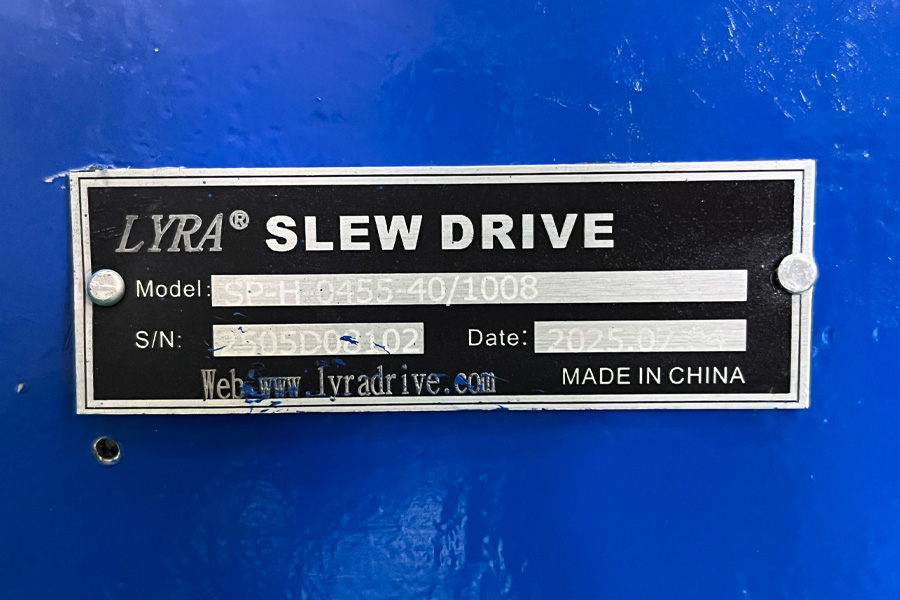

Supplier of Enveloping Slewing Drive SE5

LYRADRIVE is the global manufacturer and supplier of the Enveloping Slewing Drive SE5 series, offering technical support and solutions for industrial applications.
