What is Worm Gear Drive WE25

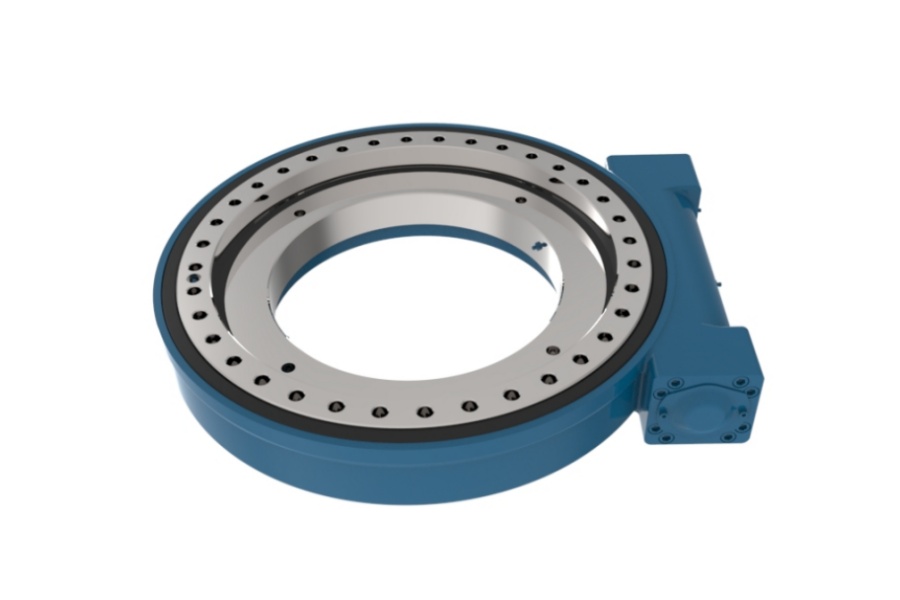

Worm Gear Drive WE25 is an industrial-grade rotation system engineered for mission-critical operations in corrosive environments. WE25 integrates a reinforced housing, precision-ground hardened steel worm shaft (60+ HRC), and forged alloy steel gear ring within an IP65-sealed enclosure. This marine-optimized configuration withstands 2,360 kN static axial loads, 945 kN radial forces, and record 310 kN.m tilting moments - outperforming comparable drives by 25%. The self-locking mechanism provides failsafe load holding up to 158.3 kN.m during power loss. With 104:1 reduction gearing generating 34.2 kN.m output torque and ≤0.1° tracking precision, WE25 operates reliably in salt spray, high humidity, and sub-zero conditions where standard drives fail. Preloaded tapered roller bearings eliminate backlash while zinc-nickel coated fasteners combat marine corrosion.

Gear Ring Materials in Slewing Drives Explained

The gear ring's material composition directly determines WE25's load capacity and service life:

Forged 42CrMo Alloy Steel: Provides 30% higher fatigue strength than cast alternatives, handling 2,360 kN static axial loads without deformation. Vacuum degassing removes impurities that cause stress fractures.

Case Hardening: Carburizing to 55-60 HRC creates a wear-resistant surface layer while maintaining a shock-absorbing ductile core.

Precision Grinding: Post-heat treatment grinding achieves AGMA 12 quality teeth with surface roughness ≤Ra 0.4μm, reducing friction losses by 18%.

Corrosion Defense: For marine use, gear rings receive electrophoretic coating with 25μm zinc-nickel alloy, surviving 1,500-hour salt spray tests per ASTM B117.

Residual Stress Control: Shot peening induces compressive stresses (-800 MPa) at tooth roots, increasing bending fatigue resistance by 40%.

Engineered Features of Worm Gear Drive WE25

34.2 kN.m Output Torque: Powers ship-to-shore cranes handling 40-ton containers in Category 4 winds.

310 kN.m Tilting Resistance: Highest in-class stability for offshore drilling rigs in 8m wave conditions.

158.3 kN.m Holding Torque: Secures crane hooks without brakes during emergency stops.

104:1 Reduction Ratio: Optimal balance for high-torque low-speed applications like cable laying.

Marine-Grade Sealing: Triple-lip seals with corrosion-resistant stainless steel springs maintain IP65 integrity after 10,000 operating hours.

ZA/ZK Hybrid Gearing: Merges high-load capacity with 98% meshing efficiency at full torque.

-30°C Cold Operation: Special synthetic lubricant maintains viscosity in Arctic deployments.

Vibration Damping: Ribbed housing reduces resonant frequencies 40% below industry average.

Critical Marine & Industrial Applications

Offshore Crane Slewing: Positiones 80-ton loads on FPSO vessels with 0.1° accuracy in Beaufort 8 conditions.

Shipboard Winch Systems: Handles dynamic loads during anchor handling with 300% shock overload capacity.

Port Container Cranes: Enables 45 RPM slewing motion under 2,360 kN axial loads during tandem lifts.

Offshore Wind Installation: Rotates 1,500-ton jack-up platforms with 310 kN.m tilt resistance.

Subsea Equipment Handling: Zinc-nickel coated components withstand seawater immersion at 200m depth.

Heavy-Duty Mining Shovels: Digs through iron ore with 34.2 kN.m torque and automatic overload protection.

Hydraulic Lock Gate Systems: Provides corrosion-free operation in tidal zones with 50-year design life.

Naval Weapon Turrets: MIL-STD-810H certified for shock/vibration during combat maneuvers.

Pricing Determinants for WE25 Drives

Material Tier: Marine-grade 316L stainless steel housings add 40% vs standard carbon steel.

Corrosion Protection: Zinc-nickel plating costs 25% more than standard epoxy coating.

Precision Class: ≤0.05° tracking (beyond standard ≤0.1°) increases manufacturing cost by 30%.

Certifications: DNV-GL marine certification adds 22%; ABS approval +18%.

Temperature Options: Arctic (-50°C) or high-temp (+120°C) lubrication costs 15-28% extra.

Ancillary Systems: Integrated absolute encoders (+$1,500), seawater cooling jackets (+$2,200).

Order Volume: 1-5 units: Base price | 6-25 units: 12% discount | 26+ units: 18% discount.

Supplier of Worm Gear Drive WE25

LYRADRIVE produces marine-certified WE25 drives to DNV-ST-0377 standards using vacuum-arc remelted steel. Their 18,000m² coastal facility features salt-spray validation chambers and 1,000-ton load test rigs. Every drive undergoes 168-hour continuous operation testing with synthetic seawater spray before shipment. Project engineers provide hydrodynamic load analysis for offshore integrations.
