Excavator Slewing Bearing

The excavator slewing bearing is a force transmission element for the upper and lower bodies to make relative slewing motion, used to support the mass of the upper body and bear the working load. Its inner race is connected to the lower body, the outer race is connected to the upper body, and the inner ring gear on the inner race is meshed with the pinion gear of the slewing motor. When the slewing motor rotates, the upper body is driven to rotate through the pinion gear.

Description

Due to the working conditions, the excavator slewing bearing generally uses an internal gear single-row four-point contact ball slewing bearing or a double-row ball (eight-point contact ball) slewing bearing. When working, it can bear axial force and radial force while bearing greater overturning force. Therefore, some extra-large excavators also use internal gear three-row cylindrical slewing bearings.

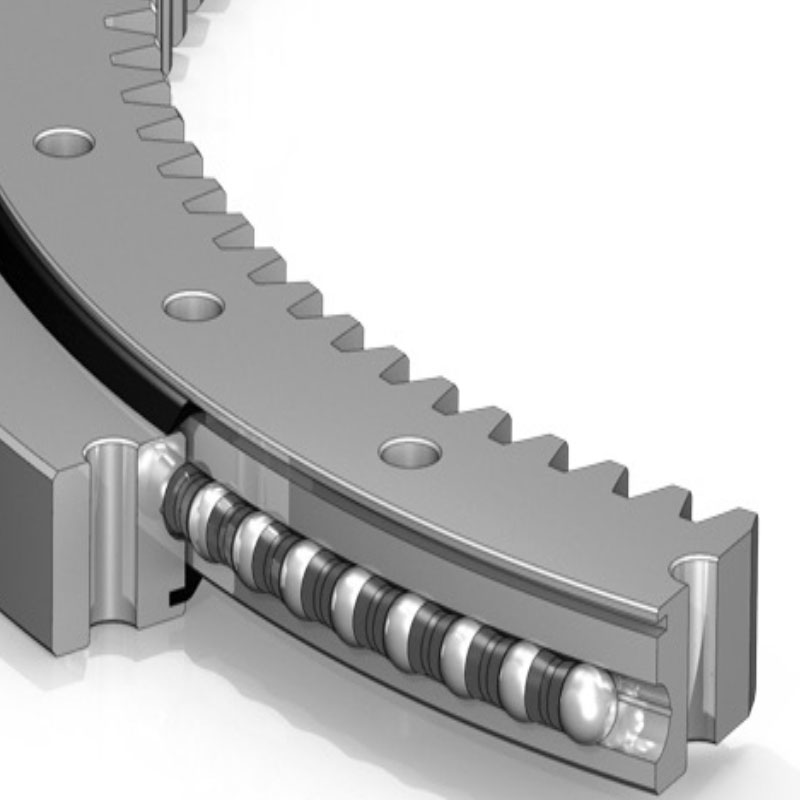

The excavator slewing bearing is mainly composed of an outer ring, an inner ring, a steel ball and an isolation block or a retaining frame. Among them, the outer ring and the inner ring are support rings, the steel ball is a supporting rolling body, and the isolation block or retaining frame is used to keep the position of the ball. The raceway usually adopts peach-shaped grooves and medium-frequency surface quenching treatment. The surface hardness can reach HRC55-60, and the depth of the hardened layer can reach 2.5~5mm. The raceway and the steel ball are loaded in a four-point contact manner. The curvature radius of the raceway is accurately calculated to ensure that the rolling body can roll smoothly during rotation, reducing rolling resistance and energy loss. The inner ring teeth are generally treated with medium-frequency quenching heat treatment. The tooth surface hardness is recommended to be HRC45~50. It is not recommended to have too high a hardness. Although high hardness will enhance the mechanical strength and wear resistance of the teeth, it will inevitably affect the toughness of the teeth. In strong working impact, there is a risk of broken teeth.

The outer ring mounting holes of the excavator slewing bearing are generally processed in an uneven manner. When replacing, it is necessary to confirm the model and part number to ensure normal installation and use.

Brand	Machine Type	OUTLINE DIMENSIONS			OUTER RING			INNER RING			Number teeth	APPROX.
Brand	Machine Type	D_a	d_i	H	H_o	n_a	B_o	H_i	n_i	B_i	Z₂	G
KOMATSU	PC30-1	595	441	52	40	15	Φ13.5	43	16	Φ13.5	89	35
KOMATSU	PC30-2	614.5	452	53.5	40	20	Φ13.5	43.5	20	Φ13.5	92	40
KOMATSU	PC40	680	495	60	50	24	Φ14	50	24	Φ14	78	60
KOMATSU	PC50-7	748	573.5	60	50	27	Φ14	50	24	Φ14	90	70
KOMATSU	PC55	748	573.5	60	50	27	Φ14	50	24	Φ14	90	70
KOMATSU	PC56	748	573.5	60	50	27	Φ14	50	24	Φ14	90	70
KOMATSU	PC60-5	852	627	75	58	24	Φ18	62	24	Φ18	80	105
KOMATSU	PC60-6	806	596	74	59	24	Φ18	61	24	Φ18	76	95
KOMATSU	PC60-6	852	627	75	58	24	Φ18	62	24	Φ18	80	105
KOMATSU	PC60-7	806	596	74	59	23	Φ18	61	24	Φ18	76	95
KOMATSU	PC60-7	852	627	75	58	22	Φ18	62	24	Φ18	80	105
KOMATSU	PC70-8	806	596	74	59	24	Φ18	61	24	Φ18	76	95
KOMATSU	PC75UU	852	627	75	58	25	Φ18	62	24	Φ18	80	105
KOMATSU	PC90-6	852	627	75	58	24	Φ18	62	24	Φ18	80	105
KOMATSU	PC100-3	1111	873	75	65	30	Φ18	62	30	Φ18	89	150
KOMATSU	PC100-5	1111	873	75	65	38	Φ18	63	38	Φ18	89	150
KOMATSU	PC120-5	1111	873	75	65	38	Φ18	63	38	Φ18	89	150
KOMATSU	PC120-6	1111	882	77	65	34	Φ18	64	38	Φ18	90	150
KOMATSU	PC120-6	1106	884	75	65	34	Φ18	64	36	M16	90	150
KOMATSU	PC150-5	1190	922	83	73	26	Φ22	67	30	Φ22	94	190
KOMATSU	PC150-7	1189	922	83	73	26	Φ22	67	30	Φ22	94	190
KOMATSU	PC160-7	1224	974	82	67	32	Φ24	73	36	M20	99	200
KOMATSU	PC200-1	1242	915	100	90	22	M20	90	36	Φ24	78	270
KOMATSU	PC200-2	1209	916	95	80	22	Φ24	85	36	Φ24	78	240
KOMATSU	PC200-3	1303	1084	104	81	26	M22	90	36	M20	110	250
KOMATSU	PC200-5	1302	1084	109.5	86.5	26	M24	90	36	M20	110	250
KOMATSU	PC200-8	1321	1078	98	77	32	Φ24	89	36	M20	96	260
KOMATSU	PC210-7	1323	1084	100	77	32	Φ24	90	36	M20	110	250
KOMATSU	PC220-3	1303	1084	104	81	26	M22	90	36	M20	110	250
KOMATSU	PC220-5	1302	1084	109.5	86.5	26	M24	90	36	M20	110	250
KOMATSU	PC200-6	1323	1084	100	77	32	Φ26	90	36	M20	110	250
KOMATSU	PC200-6	1323	1084	100	77	32	Φ24	90	36	M20	110	250
KOMATSU	PC200-7	1323	1084	100	77	32	Φ24	90	36	M20	110	250
KOMATSU	PC220-7	1323	1073	112	77	32	Φ24	102	36	M22	92	270
KOMATSU	PC210-7K	1323	1073	112	77	33	Φ24	102	36	M22	92	270
KOMATSU	PC210-8K	1323	1078	112	77	33	Φ24	102	36	M22	96	270
KOMATSU	PC228-1	1323	1084	100	77	32	Φ24	90	36	M20	110	250
KOMATSU	PC228-3	1323	1083	100	77	40	Φ24	90	36	M20	110	250
KOMATSU	PC300-2	1470	1140	137	100	34	Φ26	110	36	Φ26	83	420
KOMATSU	PC300-3	1526	1236	122	87	35	M24	110	40	M24	90	450
KOMATSU	PC300-5	1526	1236	122	97	35	M24	110	40	M24	90	450
KOMATSU	PC300-6	1532	1235	125	95	35	M24	113	40	M24	90	450
KOMATSU	PC350-6	1532	1235	125	95	35	Φ26	113	40	M24	90	450
KOMATSU	PC360-7	1532	1235	125	95	35	Φ26	113	40	M24	90	450
KOMATSU	PC400-3	1550	1236	147	108	35	M24	135	40	M24	90	550
KOMATSU	PC400-5	1550	1238	152	108	35	Φ26	140	40	M24	84	570
KOMATSU	PC450-5	1550	1238	152	108	35	Φ26	140	40	M24	84	570
KOMATSU	PC400-6	1563	1240	152	108	35	Φ29	140	40	M24	84	570
KOMATSU	PC400-7	1563	1240	152	108	35	Φ29	140	40	M24	84	570
KOMATSU	PC450-6	1563	1240	152	108	35	Φ29	140	40	M24	84	570
KOMATSU	PC450-7	1563	1240	152	108	35	Φ29	140	40	M24	84	570
KOMATSU	PC650	1794	1380	190	138	35	Φ33	160	44	Φ29	100	1100
KOMATSU	PC750	1798	1513	172	138	44	Φ33	165	48	Φ33	86	1100
KOMATSU	PC800-7	1978	1540	204	152	44	Φ33	172	48	Φ33	112	1260
KOMATSU	PC1250	2433	1953	237	167	44	Φ36	200	60	Φ36	132	2200
HITACHI	EX40-1	615	446	59	40	24	Φ13.5	50	20	Φ13.5	76	50
HITACHI	EX60-1	781	554	78	60	24	Φ18	65	24	Φ18	71	100
HITACHI	EX60-2	781	554	78	60	24	Φ18	65	24	Φ18	71	100
HITACHI	EX60-3	781	554	78	60	24	Φ18	65	24	Φ18	71	100
HITACHI	EX60-5	774	554	78	60	24	Φ18	65	24	Φ18	71	96
HITACHI	EX70	774	554	78	60	24	Φ18	65	24	Φ18	71	96
HITACHI	EX90	993	764	80	62	28	Φ18	68	36	Φ18	78	120
HITACHI	EX100-1	1195	962	86	72	36	Φ19	70	36	Φ17	98	180
HITACHI	EX120-1	1195	962	86	72	36	Φ19	70	36	Φ17	98	180
HITACHI	EX120-2	1092	862	84	68	36	Φ20	70	36	Φ18	88	150
HITACHI	EX120-3	1092	862	84	68	36	Φ20	70	36	Φ18	88	150
HITACHI	EX120-5	1092	862	84	68	36	Φ20	70	36	Φ18	88	150
HITACHI	EX160	1195	939	97	73	36	Φ19	81	36	Φ19	80	180
HITACHI	EX200-1	1310	1084	106	75	36	Φ22	95	36	M20	92	240
HITACHI	EX200-2	1312	1083.5	106	72	36	Φ22	95	36	M20	92	240
HITACHI	EX200-3	1312	1083.5	106	72	36	Φ22	95	36	M20	92	240
HITACHI	EX200-5	1312	1083.5	106	72	36	Φ22	95	36	M20	92	240
HITACHI	EX210-5	1312	1083.5	106	72	36	Φ22	95	36	M20	92	240
HITACHI	EX220-5	1420	1138	108	84	36	Φ24	98	36	M22	83	330
HITACHI	EX300-1	1530	1234	117	91	32	Φ25	105	36	M24	90	450
HITACHI	EX300-2	1530	1249	115	91	32	Φ25	105	36	M24	91	450
HITACHI	EX300-3	1530	1249	115	91	32	Φ25	105	36	M24	91	450
HITACHI	EX300-5	1630	1297	120	95	36	Φ29	110	36	M27	83	640
HITACHI	EX400-1	1650	1274	130	118	36	Φ29	110	36	Φ29	107	690
HITACHI	EX400-3	1530	1249	115	91	32	Φ25	105	36	M24	91	450
HITACHI	ZAX60	756	574	66	52	27	Φ15.5	56	24	Φ15.5	90	80
HITACHI	ZAX60-3	756	574	70	50	33	Φ15.5	60	24	Φ15.5	90	80
HITACHI	ZAX70	806	593	73	60	25	Φ17.5	60	24	Φ17.5	76	90
HITACHI	ZAX80	806	593	73	60	25	Φ17.5	60	24	Φ17.5	76	90
HITACHI	ZAX120	1092	860	86	68	30	Φ20	70	36	Φ18	88	150
HITACHI	ZAX130	1092	860	86	68	30	Φ20	70	36	Φ18	88	150
HITACHI	ZX200	1312	1081	106	72	32	Φ21	95	36	M20	92	240
HITACHI	ZX210	1312	1081	106	72	32	Φ21	95	36	M20	92	240
HITACHI	ZX200-3	1316	1084	96	77	37	Φ21	85	36	M20	92	240
HITACHI	ZX225U	1310	1084	106	72	32	Φ21	95	36	M20	92	240
HITACHI	ZAX230	1420	1138	108	84	36	Φ24	98	36	M22	83	330
HITACHI	ZX240	1420	1138	108	84	36	Φ24	98	36	M22	83	330
HITACHI	ZX270	1420	1138	108	84	36	Φ24	98	36	M22	83	330
HITACHI	ZX240-3	1420	1138	108	84	35	Φ24	98	36	M22	83	330
HITACHI	ZX240-3	1420	1138	108	84	35	Φ24	98	36	M22	83	330
HITACHI	ZX270-3	1420	1138	108	84	35	Φ24	98	36	M22	83	330
HITACHI	ZX260-5A	1418	1140	110	86	38	Φ23	98	36	M22	97	330
HITACHI	ZX250-5G	1418	1140	110	86	38	Φ23	98	36	M22	97	330
HITACHI	ZX330	1630	1297	120	95	36	Φ29	110	36	M27	83	660
HITACHI	ZX350-5	1630	1297	120	95	36	Φ29	110	36	M27	83	660
HITACHI	ZX450H	1650	1274	130	118	36	Φ29	110	36	Φ29	107	690
HITACHI	ZAX670-3	1853	1442	141	128	40	Φ32	118	40	Φ32	104	900
HITACHI	ZAX870-3	2037	1594	158	145	41	Φ35	135	48	Φ32	115	1150
HITACHI	ZAX890-5G	2037	1594	158	145	41	Φ35	135	48	Φ32	115	1150
KOBELCO	SK03	810	584	84	67	30	Φ17.5	67	30	Φ17.5	75	100
KOBELCO	SK60C	748	573.5	60	50	27	Φ14	50	24	Φ14	90	80
KOBELCO	SK60-5	810	586.5	84	67	25	17.5	67	30	17.5	75	100
KOBELCO	SK60-8	800	590	74	60	20	Φ17	61	20	Φ17	86	95
KOBELCO	SK75-8	810	586	82	65	24	Φ17	65	30	Φ17	75	100
KOBELCO	SK100	1093	880	85	60	28	Φ17	75	36	M16	89	150
KOBELCO	SK04	1094	880	85	60	28	Φ17.5	75	36	M16	112	150
KOBELCO	SK09	1163	970	81	57	35	Φ17	71	36	M16	123	140
KOBELCO	SK120-5	1093	880	85	60	28	Φ17	75	36	M16	89	150
KOBELCO	SK130-8	1129	920	85	60	34	Φ18	75	36	M16	93	160
KOBELCO	SK135	1129	920	85	60	34	Φ18	75	36	M16	93	160
KOBELCO	SK140-8	1129	920	85	60	34	Φ18	75	36	M16	93	160
KOBELCO	SK200-1	1311	1083	105	78	33	Φ22	95	36	M20	110	260
KOBELCO	SK200-2	1311	1083	105	78	33	Φ22	95	36	M20	110	260
KOBELCO	SK200-3	1311	1083	105	78	33	Φ22	95	36	M20	110	260
KOBELCO	SK200-5	1311	1083	105	78	33	Φ22	95	36	M20	110	260
KOBELCO	SK200-6	1311	1083	105	78	33	Φ22	95	36	M20	110	260
KOBELCO	SK210-6E	1311	1083	105	78	33	Φ22	95	36	M20	110	260
KOBELCO	SK200-8	1310	1082	108	76	33	Φ21	98	36	M20	110	260
KOBELCO	SK200-10	1310	1082	108	76	33	Φ21	98	36	M20	110	260
KOBELCO	SK07-1	1300	1085	95	70	32	Φ22	85	36	M20	110	260
KOBELCO	SK907B	1312	1083	105	78	32	Φ22	95	36	M20	110	260
KOBELCO	SK07-N2	1312	1083	95	78	32	Φ22	95	36	M20	110	260
KOBELCO	SK235	1410	1083	116	88	33	Φ22	106	36	M20	110	330
KOBELCO	SK230-6	1408	1134	122	88	33	Φ22	111	36	M20	82	330
KOBELCO	SK250-8	1418	1134	120	86	33	Φ22	110	36	M20	82	330
KOBELCO	SK260-8	1418	1134	120	86	33	Φ22	110	36	M20	82	330
KOBELCO	SK250-10	1418	1134	120	86	33	Φ22	110	36	M20	82	330
KOBELCO	SK260-10	1418	1134	120	86	33	Φ22	110	36	M20	82	330
KOBELCO	SK330-6	1561	1201	125	105	35	Φ26	115	36	M24*2	77	550
KOBELCO	SK350-8	1614	1272	120	100	35	Φ26	109	36	M24*2	92	530
KOBELCO	SK350-10	1603	1272	120	100	35	Φ26	110	36	M24*2	92	530
KOBELCO	SK450-6E	1692	1312	130	108	36	Φ29	120	36	M27*2	84	660
KOBELCO	SK460-8	1807	1442	120	103	36	Φ29	110	36	M27	105	890
CATERPILLAR	CAT306	770	574	73	62	20	Φ18	57	18	Φ18	84	80
CATERPILLAR	CAT306E2	770	567	80	68	22	Φ18	58	26	Φ18	84	80
CATERPILLAR	CAT70B	810	585	84	67	25	Φ18	67	30	Φ18	75	100
CATERPILLAR	CAT307B	811	586	84	67	25	Φ18	67	30	Φ18	75	100
CATERPILLAR	CAT307C	810	586	83	63	29	Φ18	63	38	Φ18	75	100
CATERPILLAR	CAT307D	810	586	83	63	29	Φ18	63	38	Φ18	75	100
CATERPILLAR	CAT307E	810	586	83	63	29	Φ18	63	38	Φ18	75	100
CATERPILLAR	CAT308	810	586	84	67	25	Φ18	67	30	Φ18	75	100
CATERPILLAR	CAT308C	810	586	82	62	29	Φ18	62	38	Φ18	75	100
CATERPILLAR	CAT308E	810	586	83	63	29	Φ18	63	38	Φ18	75	100
CATERPILLAR	CAT310	902	663	95	76	36	Φ18	70	42	Φ18	76	120
CATERPILLAR	CAT110	1093	881	72	50	34	Φ18	62	38	M16	90	140
CATERPILLAR	CAT312C	1093	881	72	50	34	Φ18	62	38	M16	90	140
CATERPILLAR	CAT312D	1093	881	72	50	34	Φ18	62	38	M16	90	140
CATERPILLAR	CAT313D	1093	881	72	50	34	Φ18	62	38	M16	90	140
CATERPILLAR	CAT314	1093	881	72	50	34	Φ18	62	38	M16	90	140
CATERPILLAR	CAT120	1115	882	75	60	29	Φ18	67	30	M16	90	150
CATERPILLAR	CAT215	1178	963	90	78	36	Φ19	73	36	5/8-11UNC	94	180
CATERPILLAR	CAT225	1451	1038	104.5	92	33	Φ24	89	36	Φ24	104	300
CATERPILLAR	CAT315D	1208	961	92	74	34	Φ22	80	36	M20	98	200
CATERPILLAR	CAT318D2	1208	961	92	74	34	Φ22	84	36	M20	98	200
CATERPILLAR	CAT200B	1307.5	1082	100	85	33	M20	87	36	M20	110	250
CATERPILLAR	CAT312B	1115	882	75	60	29	Φ18	67	30	M16	90	150
CATERPILLAR	CAT320B	1316	1082	100	85	33	Φ22	87	36	M20	110	250
CATERPILLAR	CAT320C	1316	1081	105	73	42	Φ22	93	40	M20	110	250
CATERPILLAR	CAT320D	1316	1081	105	73	42	Φ22	93	40	M20	110	250
CATERPILLAR	CAT320L	1316	1084	105	85	38	Φ22	92	36	M20	110	250
CATERPILLAR	CAT324L	1459	1164	110	87.5	34	Φ22	95	36	M24	85	360
CATERPILLAR	CAT326F	1459	1164	110	87.5	34	Φ22	95	36	M24	85	360
CATERPILLAR	CAT325B	1495	1164	110	93	35	Φ26	95	38	M24	85	400
CATERPILLAR	CAT325C	1495	1164.2	110	93	38	Φ26	95	42	M24	85	400
CATERPILLAR	CAT330GC	1495	1164.2	110	93	38	Φ26	95	42	M24	85	400
CATERPILLAR	CAT330B	1665	1313	138	100	36	Φ26	123	40	M24	84	650
CATERPILLAR	CAT330C	1665	1312	138	100	42	Φ26	123	46	M24	84	650
CATERPILLAR	CAT336GC	1665	1312	138	100	42	Φ26	123	46	M24	84	650
CATERPILLAR	CAT336D	1673	1313	138	100	46	Φ26	123	52	M24	84	680
CATERPILLAR	CAT345C	1678	1316	141	105	54	Φ26	125	70	M24	96	680
CATERPILLAR	CAT374D	1820	1344	182	147	37	Φ33	148	60	Φ33	98	1100
CATERPILLAR	CAT390D	1952	1458	215	170	48	Φ33	180	74	Φ33	93	1500
CATERPILLAR	CAT6015	2175	1736	230	150	48	Φ30	200	48	Φ30	97	2500
SUMITOMO	SH60-1	766	560	97	58	21	Φ17	80	20	Φ17	71	100
SUMITOMO	SH120A1	1171	973	88	56	28	Φ18	78	36	M16	98	160
SUMITOMO	SH120-1	1171	973	88	56	28	Φ18	78	36	M16	98	160
SUMITOMO	SH120A2	1171	973	88	56	28	Φ18	78	36	M16	98	160
SUMITOMO	SH120-2	1171	973	88	56	28	Φ18	78	36	M16	98	160
SUMITOMO	SH120A3	1171	973	80	56	28	Φ18	69	36	M16	98	160
SUMITOMO	SH120-3	1171	973	80	56	28	Φ18	69	36	M16	98	160
SUMITOMO	SH120Z3	1172	973	87	65	28	Φ18	78	36	M16	98	160
SUMITOMO	SH120C3	1172	973	87	65	28	Φ18	78	36	M16	98	160
SUMITOMO	SH130-5	1172	973	87	65	28	Φ18	78	36	M16	98	160
SUMITOMO	SH135	1070	852	101	60	28	Φ22	90	36	M16	86	160
SUMITOMO	SH140	1171	973	88	56	28	Φ18	78	36	M16	98	160
SUMITOMO	SH145	1171	973	88	56	28	Φ18	78	36	M16	98	160
SUMITOMO	SH160	1327	1093	94	61	31	Φ22	84	36	M20	92	230
SUMITOMO	SH260	1171	973	84	56	28	Φ18	75	36	M16	98	160
SUMITOMO	SH265	1171	973	84	56	28	Φ18	75	36	M16	98	160
SUMITOMO	SH200A1	1330	1093	102	74	31	Φ22	92	36	M20	92	250
SUMITOMO	SH200A2	1330	1093	102	74	31	Φ22	92	36	M20	92	250
SUMITOMO	SH200A3	1330	1093	102	74	31	Φ22	92	36	M20	92	250
SUMITOMO	SH200C2	1330	1093	102	74	31	Φ22	92	36	M20	92	250
SUMITOMO	SH200C3	1330	1093	102	74	31	Φ22	92	36	M20	92	250
SUMITOMO	SH200Z3	1330	1093	102	74	31	Φ22	92	36	M20	92	250
SUMITOMO	SH220	1375	1094	121	80	36	Φ26	110	36	M24	92	350
SUMITOMO	SH240-5	1377	1094	123	88	28	Φ26	113	36	M24	92	350
SUMITOMO	SH240-3	1377	1094	123	88	27	Φ26	113	36	M24	92	350
SUMITOMO	SH225	1330	1093	102	74	32	Φ22	92	36	M20	92	250
SUMITOMO	SH280	1315	1083	99	65	32	Φ22	88	36	M20	92	250
SUMITOMO	SH300-2	1510	1193	135	100	38	Φ26	125	30	M24	86	450
SUMITOMO	SH330	1510	1192	135	100	38	Φ26	125	43	M24	86	450
SUMITOMO	SH350	1616	1274	120	100	41	Φ26	110	46	M24	92	550
SUMITOMO	SH430	1464	1192	135	78	36	Φ26	125	30	M24	86	420
SUMITOMO	SH460	1616	1274	145	125	41	Φ26	130	46	M24	92	650
SUMITOMO	SH580	1547	1263	147	90	36	Φ27	135	36	M24	92	430
KATO	HD250-7	810	584	84	67	30	Φ17	67	30	Φ17	75	100
KATO	HD450-5	1111	873	75	65	30	Φ18	62	30	Φ18	89	150
KATO	HD450-7	1111	873	75	65	30	Φ18	62	30	Φ18	89	150
KATO	HD512	1111	873	75	65	30	Φ18	62	30	Φ18	89	150
KATO	HD513	1111	873	75	65	30	Φ18	62	30	Φ18	89	150
KATO	HD516	1111	873	75	65	30	Φ18	62	30	Φ18	89	150
KATO	HD550	1163	961	94	66	36	Φ18	84	36	M16	98	180
KATO	HD100	1111	873	75	65	30	Φ18	62	30	Φ18	89	150
KATO	HD700-5	1300	1084	110	89	35	M20	94	36	M20	92	250
KATO	HD700-7	1320	1080	95	70	36	Φ22	85	36	M20	92	250
KATO	HD770SE	1402	1132	97	80	36	Φ21	80	36	M20	96	320
KATO	HD770-1	1402	1132	97	80	36	Φ21	80	36	M20	96	320
KATO	HD770-2	1402	1132	97	80	36	Φ21	80	36	M20	96	320
KATO	HD800-7	1402	1132	97	80	36	Φ22	80	36	M20	96	320
KATO	HD800-5	1402	1132	97	80	36	Φ22	80	36	M20	96	320
KATO	HD820-3	1320	1080	95	70	36	Φ22	85	36	M20	92	250
KATO	HD820-1	1320	1080	95	70	36	Φ22	85	36	M20	92	250
KATO	HD900-7	1402	1132	97	80	36	Φ22	80	36	M20	96	320
KATO	HD1023	1402	1132	97	80	36	Φ22	80	36	M20	96	320
KATO	HD1250	1595	1277	111	90	36	Φ26	100	36	M24	92	520
DOOSAN	DH55-5	812	616	75	65	24	Φ18	65	24	Φ18	90	95
DOOSAN	DX60	812	616	75	65	24	Φ18	65	24	Φ18	90	95
DOOSAN	DH60	812	616	75	65	24	Φ18	65	24	Φ18	90	95
DOOSAN	DH80GO	902	640	82	72	24	Φ20	65	24	M18	82	120
DOOSAN	DH80-7	902	640	82	72	24	Φ20	65	24	M18	82	120
DOOSAN	DH150	1202	947	80	75	36	Φ22	70	36	M20	80	200
DOOSAN	DX120	1202	945	80	75	36	Φ22	70	36	M20	80	200
DOOSAN	DX150	1202	945	80	75	36	Φ22	70	36	M20	80	200
DOOSAN	DX180	1202	945	82	75	36	Φ22	70	36	M20	80	200
DOOSAN	DH200-3	1302	1084	110	80	36	Φ20	98	36	M20	89	250
DOOSAN	DH220-2	1310	1084	110	80	36	Φ21	95	36	M20	79	250
DOOSAN	DH220-3	1310	1084	110	80	36	Φ21	95	36	M20	79	250
DOOSAN	DH220-5	1327	1084	111	88	36	Φ21	95	36	M20	92	270
DOOSAN	DH220-7LC	1327	1084	111	88	36	Φ21	95	36	M20	92	270
DOOSAN	DH220-9	1327	1084	111	88	36	Φ21	95	36	M20	92	270
DOOSAN	DH215-7	1327	1084	111	88	36	Φ21	95	36	M20	92	270
DOOSAN	DH215-9	1327	1084	111	88	36	Φ21	95	36	M20	92	270
DOOSAN	DH225-7	1327	1084	110	90	36	Φ21	95	36	M20	92	270
DOOSAN	DH225-9	1327	1084	110	90	36	Φ21	95	36	M20	92	270
DOOSAN	DX225-9	1327	1084	110	90	36	Φ21	95	36	M20	92	270
DOOSAN	DH258	1410	1134	117	88	35	Φ25	104	36	M24	82	330
DOOSAN	DX260	1410	1132	117	88	35	Φ25	104	36	M24	82	330
DOOSAN	DH280	1460	1162	120	95	35	Φ25	105	36	M24	85	400
DOOSAN	DH290	1460	1162	120	95	35	Φ25	105	36	M24	85	400
DOOSAN	DH300-5	1460	1162	120	95	35	Φ25	105	36	M24	85	400
DOOSAN	DH300-7	1464	1165	120	95	35	Φ26	110	36	M24	85	400
DOOSAN	DX300	1476	1165	120	80	35	Φ26	110	36	M24	85	400
DOOSAN	DH10L	1526	1236	122	87	35	Φ26	110	40	M24	90	430
DOOSAN	DH320	1526	1236	122	87	35	Φ26	110	40	M24	90	430
DOOSAN	DH330-3	1526	1236	122	87	35	Φ26	110	40	M24	90	430
DOOSAN	DH340	1526	1236	122	87	35	Φ26	110	40	M24	90	430
DOOSAN	DX340	1544	1234	120	87	35	Φ26	110	40	M24	90	460
DOOSAN	S340-V	1544	1236	122	87	35	Φ26	110	40	M24	90	460
DOOSAN	DH370-7	1551	1234	132	103	35	Φ25	120	40	M24	90	500
DOOSAN	DX380	1585	1235	132	101	40	Φ25	120	40	M24	90	560
DOOSAN	DH420	1551	1234	132	103	35	Φ25	120	40	M24	90	500
DOOSAN	DX420	1551	1234	132	103	35	Φ25	120	40	M24	90	500
DOOSAN	DH500	1682	1319	138	119	44	Φ25	110	44	Φ25	111	600
DOOSAN	DX500	1682	1319	138	119	44	Φ25	110	44	Φ25	111	600
HYUNDAI	R60-5	800	573	70	56	20	Φ17	60	20	Φ17	90	95
HYUNDAI	R60-7	800	590	74	60	20	Φ17	61	20	Φ17	86	95
HYUNDAI	R80-7	900	665	85	70	30	Φ17	70	30	Φ17	85	120
HYUNDAI	R110-7	1095	863	80	70	36	Φ19	70	36	M16	88	180
HYUNDAI	R130-5	1195	962	85	75	36	Φ19	70	36	M16	98	180
HYUNDAI	R130-7	1195	962	85	75	36	Φ19	70	36	M16	98	180
HYUNDAI	R140-7	1195	962	90	80	36	Φ19	80	36	M16	98	190
HYUNDAI	R150-9	1195	962	90	80	36	Φ19	80	36	M16	98	190
HYUNDAI	R160	1328	1083	111	80	28	Φ22	94	36	M20	92	260
HYUNDAI	R190	1328	1083	111	80	28	Φ22	94	36	M20	92	260
HYUNDAI	R200-5	1328	1083	111	80	28	Φ22	94	36	M20	92	260
HYUNDAI	R210	1328	1083	111	80	28	Φ22	94	36	M20	92	260
HYUNDAI	R210-5	1328	1083	111	80	28	Φ22	94	36	M20	92	260
HYUNDAI	R210-3	1328	1083	111	80	28	Φ22	94	36	M20	92	260
HYUNDAI	R205VS	1327	1083	110	89	30	Φ22	94	36	M20	92	270
HYUNDAI	R200-7	1327	1083	110	89	30	Φ22	94	36	M20	92	270
HYUNDAI	R210-7	1327	1083	110	89	30	Φ22	94	36	M20	92	270
HYUNDAI	R215-7	1327	1083	110	89	30	Φ22	94	36	M20	92	270
HYUNDAI	R215VS	1327	1083	110	89	30	Φ22	94	36	M20	92	270
HYUNDAI	R220-5	1328	1083	111	80	28	Φ22	94	36	M20	92	270
HYUNDAI	R225-7	1327	1083	110	89	30	Φ22	94	36	M20	92	270
HYUNDAI	R225-9	1327	1083	110	89	30	Φ22	94	36	M20	92	270
HYUNDAI	R250LC-7	1410	1132	122	88	34	Φ23	109	36	M24	82	350
HYUNDAI	R260LC-7	1410	1132	122	88	34	Φ23	109	36	M24	82	350
HYUNDAI	R265LC-7	1410	1132	122	88	34	Φ23	109	36	M24	82	350
HYUNDAI	R275LC-9	1410	1132	122	88	34	Φ23	109	36	M24	82	350
HYUNDAI	R290	1526	1236	122	87	35	Φ26	110	40	M24	90	430
HYUNDAI	R300	1526	1236	122	87	35	Φ26	110	40	M24	90	430
HYUNDAI	R290-7	1526	1235	122	97	38	Φ26	110	40	M24	90	430
HYUNDAI	R305-7	1526	1235	122	97	38	Φ26	110	40	M24	90	430
HYUNDAI	R305-9	1526	1235	122	97	38	Φ26	110	40	M24	90	430
HYUNDAI	R320-7	1526	1235	122	97	38	Φ26	110	40	M24	90	430
HYUNDAI	R335-7	1526	1235	122	97	38	Φ26	110	40	M24	90	430
HYUNDAI	R330-9S	1526	1235	132	102	38	Φ26	120	40	M24	90	480
HYUNDAI	R360	1550	1234	147	108	35	Φ26	135	40	M24	90	560
HYUNDAI	R375	1550	1234	147	108	35	Φ26	135	40	M24	90	560
HYUNDAI	R385	1550	1234	147	108	35	Φ26	135	40	M24	90	560
HYUNDAI	R395	1550	1234	147	108	35	Φ26	135	40	M24	90	560
HYUNDAI	R450-7	1675	1346	132	108	46	Φ25	120	44	M24	114	580
HYUNDAI	R455-9	1675	1346	132	108	46	Φ25	120	44	M24	114	580
HYUNDAI	R450-9	1775	1395	128	108	52	Φ26	116	48	M24	118	720
HYUNDAI	R500-9	1775	1395	128	108	52	Φ26	116	48	M24	118	720
HYUNDAI	R520	1775	1395	128	108	52	Φ26	116	48	M24	118	720
VOLVO	EC55	800	590	74	60	20	Φ17	61	20	Φ17	86	95
VOLVO	EC140B	1195	962	85	75	36	Φ19	70	36	M16	98	180
VOLVO	EC160B	1200	963	99	72	32	Φ21.5	82	36	M20	98	200
VOLVO	EC180B	1200	963	99	72	32	Φ21.5	82	36	M20	98	200
VOLVO	EC210	1327	1082	110	90	33	Φ21	90	36	M20	92	260
VOLVO	EC210B	1327	1083	108	90	34	Φ21	90	36	M20	92	260
VOLVO	EC240	1460	1164	120	95	33	Φ24	105	36	M22	85	260
VOLVO	EC290	1530	1236	122	90	35	Φ26	113	40	M24	90	460
VOLVO	EC300	1530	1236	122	90	35	Φ26	113	40	M24	90	460
VOLVO	EC360	1552	1234	147	108	35	Φ26	135	40	M24	90	550
VOLVO	EC480	1777	1392	120	110	40	Φ33	110	40	M30	118	680
VOLVO	EC700	1815	1373	205	147	48	Φ33	180	60	Φ33	100	1200
KUBOTA	U15	458	320	35	30	16	M12	30	18	M12	73	30
KUBOTA	U20	459.4	320.6	40.5	35	18	M12	30.5	18	Φ13	82	45
KUBOTA	KX135	599	429	45	40	19	M16	40	16	M16	80	60
KUBOTA	KX151	694	497	60	50	24	M16	50	24	M16	78	80
KUBOTA	KX161	694	497	60	50	24	M16	50	24	M16	78	80
KUBOTA	KX165	770	574	61	47	24	M16	52	24	M16	84	80
KUBOTA	KX175	990	785	71	53	27	M16	63	30	M16	100	130
KUBOTA	KX185	990	784	73	52	30	M16	63	36	M16	100	130
JCB	JCB8056	852	649	70	55	24	Φ18	60	24	M16	109	100
JCB	JS130	1172	972	88	56	28	Φ19	77	36	M16	98	160
JCB	JS140	1172	972	88	56	32	Φ19	77	36	M16	98	160
JCB	JS220	1328	1094	102	74	31	Φ22	92	36	M20	92	260
JCB	JS240	1375	1094	121	80	36	Φ26	110	36	M24	92	330
JCB	JS330	1510	1192	135	100	38	Φ26	125	43	M24	86	500
CASE	CX55	834	649	63	48	20	Φ16	55	20	Φ16	110	100
CASE	CX130	1172	973	87	65	28	Φ18	78	36	M16	98	160
CASE	CX130B	1172	973	87	65	28	Φ18	78	36	M16	98	160
CASE	CX130C	1172	973	87	65	28	Φ18	78	36	M16	98	160
CASE	CX130D	1172	973	87	65	28	Φ18	78	36	M16	98	160
CASE	CX210	1330	1093	102	74	31	Φ22	92	36	M20	92	260
CASE	CX210B	1330	1093	102	74	31	Φ22	92	36	M20	92	260
CASE	CX210C	1330	1093	102	74	31	Φ22	92	36	M20	92	260
CASE	CX240	1377	1094	123	88	27	Φ26	113	36	M24	92	250
CASE	CX240B	1377	1094	123	88	28	Φ26	113	36	M24	92	350
CASE	CX290B	1510	1193	135	101	32	Φ26	125	43	M24	86	500
CASE	CX360	1616	1274	120	100	41	Φ26	110	46	M24	92	560
IHI	IHI60	845	648	57	48	20	Φ17	50	20	Φ17	110	100
IHI	IHI80	973	785	82	55	30	Φ17	71	30	Φ17	100	120
IHI	IHI100	1000	786	86	65	30	Φ17	77	30	Φ17	100	150
TAKEUCHI	TB60	845	649	65	48	20	Φ17	58	20	Φ17	110	100
TAKEUCHI	TB175	974	785	78	60	30	Φ18	63	34	Φ18	100	120
TAKEUCHI	TB1140	1133	861	90	74	30	Φ20	74	36	Φ20	88	200
JOHN DEER	E140	1140	890	80	65	47	Φ18	70	45	M16	90	150
JOHN DEER	E210	1347	1034	105	73	37	Φ22	95	36	M22	88	300
JOHN DEER	E260	1363	1049	105	82	36	Φ24	95	36	M22	88	360
JOHN DEER	E360	1557	1218	120	95	48	Φ26	110	42	M24	88	480
LIEBHERR	R904	1187	961	73	48	40	Φ22	65	40	M20	106	140
LIEBHERR	R916	1310	1040	93	48	40	Φ22	85	48	M20	104	200
LIEBHERR	R914	1215	940	115	72	48	Φ22	105	56	M22	94	260
LIEBHERR	R924	1215	940	115	72	48	Φ22	105	56	M22	94	260
LIEBHERR	R934	1354	1010	125	92	40	Φ26	114	48	M24	92	330
LIEBHERR	R944B	1365	1008	150	112	60	Φ26	140	72	M24	84	500
LIEBHERR	R944C	1450	1116	145	110	50	Φ30	135	60	M27	93	530
LIEBHERR	R954C	1480	1108	155	110	50	Φ30	145	60	M27	80	580
LIEBHERR	R984	2555	2078	215	130	60	Φ33	200	60	M30	104	23000
