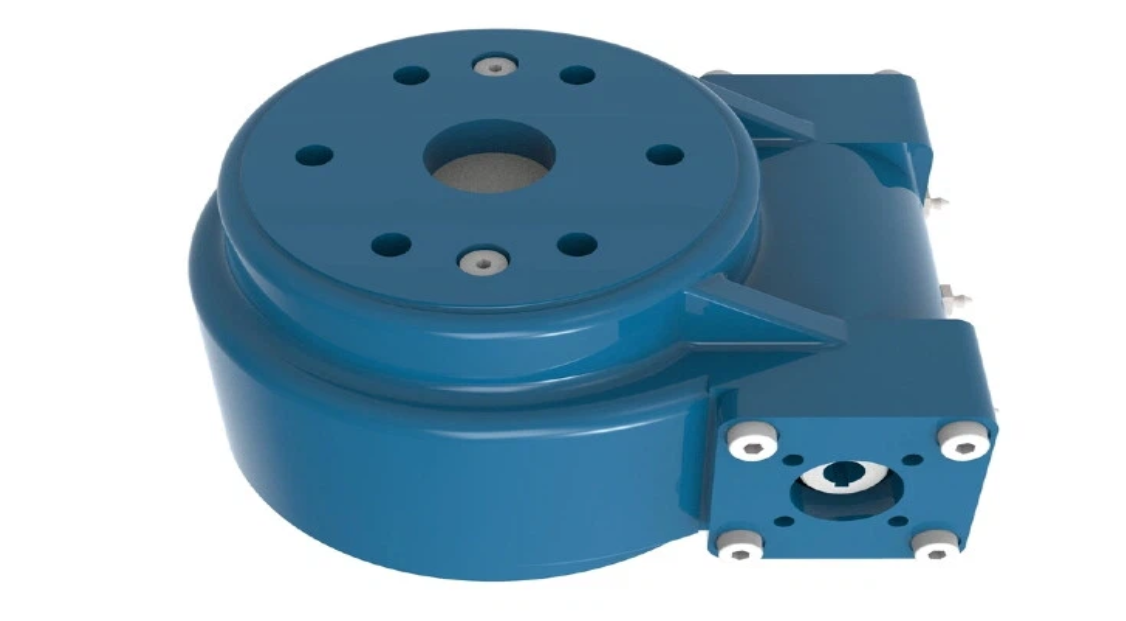

What are SE Slew Drives?

What are SE Slew Drives?

What are SE Slew Drives?

In the world of precision machinery and heavy equipment, the ability to control rotational movement with accuracy and stability is paramount. The SE slew drive is a specialized type of enclosed slewing drive designed to handle significant radial, axial, and tilting moment loads within a compact footprint.

• Integrated Design: Unlike traditional open-gear systems, the SE slew drive integrates a slewing bearing, a worm shaft, and a housing into a single, pre-engineered unit.

• Structural Configuration: The "SE" designation typically refers to a specific structural configuration, often characterized by an upright worm position and a robust housing design. This provides exceptional rigidity and smooth motion control.

  Ready-to-Install Solution: This unit eliminates the need for external gearboxes or complex mounting structures, serving as a ready-to-install solution that simplifies equipment design while delivering high torque output and reliable positioning.

Features of SE Slew Drive

The SE slew drive distinguishes itself through a range of engineering-focused features that prioritize durability, efficiency, and ease of integration.

• Upright Worm Arrangement: The upright worm position allows for a more compact vertical profile while maintaining optimal gear mesh alignment, typically resulting in higher efficiency and smoother operation.

• Robust Protective Housing: The drive is fully enclosed in a robust housing made from high-strength cast iron or steel, providing superior protection against contaminants such as dust, moisture, and debris. This enclosure also retains lubricant, reducing maintenance requirements.

• High-Capacity Slewing Bearing: The drive incorporates a high-capacity slewing bearing with optimized internal clearances, enabling it to withstand substantial combined loads (axial, radial, and tilting moment).

• Self-Locking Capability: Many models feature a self-locking mechanism inherent to the worm gear design, which prevents back-driving and enhances safety in applications where load holding is critical.

How does SE Slew Drive work?

The operation of an SE slew drive is based on the principle of a worm gear transmission system, designed to convert high-speed input into high-torque, controlled rotational output.

• Power Transmission: When rotational power is applied to the hardened worm shaft (via a hydraulic motor, electric motor, or manual input), the worm rotates and engages the teeth of the worm wheel.

• Torque Multiplication: Due to the geometric relationship between the worm and the wheel, the rotation is transferred smoothly while achieving a high reduction ratio in a single stage, allowing for precise positioning and high torque multiplication.

• Controlled Rotation: As the worm wheel turns, it drives the attached mounting interface (either the inner or outer ring) to rotate relative to the fixed housing.

• Inherent Braking: The self-locking characteristic of the worm gear system means that when the input shaft stops, the load cannot back-drive the worm, effectively holding the position without requiring a separate brake.

Detailed Types of SE Slew Drive

SE slew drives are available in several configurations to accommodate different mounting orientations, load capacities, and operational requirements.

• By Mounting Configuration:

• Flanged Housing: Designed for direct bolt-on attachment to equipment frames.

• Base-Mounted: Suitable for integration into support structures or existing machinery bases.

• By Gear Ratio:

• Moderate Reduction: For applications requiring faster positioning speeds.

• High-Ratio Models: For applications demanding maximum torque output and superior holding capability.

• By Environmental Protection:

• Standard Sealing: For general industrial environments.

• Enhanced Sealing: Engineered with specialized grease and advanced seals for extreme conditions such as high humidity, corrosive atmospheres, or heavy dust exposure.

• By Load Capacity:

• Light-Duty Series: Ideal for solar tracking systems and light automation.

• Heavy-Duty Series: Capable of supporting several tons, suitable for construction and material handling equipment.

Construction of SE Slew Drive

The construction of an SE slew drive reflects a focus on structural integrity, precision, and longevity, with each component engineered for demanding operational environments.

• Slewing Bearing Core:

• Typically features a single-row ball or cross-roller design to manage axial, radial, and tilting moment loads simultaneously.

• Bearing rings are manufactured from heat-treated alloy steel to ensure hardness, wear resistance, and dimensional stability.

• Worm Shaft:

• Constructed from case-hardened and ground alloy steel, providing a hardened tooth surface that minimizes friction and wear during prolonged operation.

• Housing:

• Made of ductile iron or fabricated steel, machined to tight tolerances to ensure proper alignment between the worm and the bearing’s internal gear teeth.

• Sealing and Assembly:

• High-performance seals are integrated at all entry points to prevent lubricant leakage and ingress of external contaminants.

• The assembly is pre-loaded and tested during manufacturing to establish optimal gear mesh contact, minimizing backlash while ensuring smooth rotation.

Application of SE Slew Drive

SE slew drives are utilized across a wide range of industries where precise rotation, load handling, and reliability are essential.

• Renewable Energy:

• Serve as the primary positioning mechanism for solar tracking systems, enabling photovoltaic panels or concentrated solar power mirrors to follow the sun for maximum energy capture.

• Construction and Aerial Work Platforms:

• Provide slewing functionality for manlifts, boom lifts, and cranes, allowing operators to position baskets, jibs, and turntables safely and accurately.

• Material Handling:

• Employed in conveyor turntables, indexing tables, and robotic manipulators where controlled rotation is required.

• Mobile Equipment:

• Commonly found in truck-mounted cranes and excavators, where compact design and high load capacity are ideal for space-constrained applications.

• Specialized Applications:

• The inherent self-locking capability makes them suitable for fail-safe positioning in satellite ground stations, radar systems, and industrial automation equipment.

How to Maintain the SE Slew Drive?

Proper maintenance is essential to maximizing the service life and performance of an SE slew drive. A structured maintenance routine ensures reliability and prevents premature failure.

• Regular Lubrication:

• Frequency: Inspect periodically; re-grease according to manufacturer recommendations, typically every few months or after a specified number of operating hours.

• Material: Use high-quality extreme-pressure grease.

• Procedure: Clean all grease fittings before application to prevent contaminants from being forced into the bearing cavity.

• Visual Inspections:

• Conduct regular checks for signs of seal damage, corrosion, or unusual wear patterns on the housing.

• Increase inspection frequency for drives operating in dusty, wet, or chemically aggressive environments.

• Mounting Bolt Verification:

• Periodically verify mounting bolt torque, as loosening of fasteners can lead to misalignment and premature wear.

• Performance Monitoring:

• Investigate any unusual noise, vibration, or increase in backlash promptly, as these may indicate internal wear or loss of preload requiring professional evaluation.

Key Factors for Choosing a High-Quality SE Slew Drive

Selecting a high-quality SE slew drive requires careful evaluation of several technical and quality-related factors to ensure optimal performance and longevity.

• Load Capacity:

• Verify that the drive’s rated static and dynamic capacities exceed the maximum axial, radial, and moment loads expected in the application.

• Gear Ratio and Torque:

• Ensure the gear ratio and torque output align with the required rotational speed and positioning accuracy.

• Backlash:

• Consider the degree of play between gear teeth. Applications such as solar tracking or robotic positioning typically demand low or zero backlash for precise control.

• Materials and Manufacturing Quality:

• Prioritize drives featuring induction-hardened gear teeth, precision-ground worm shafts, and high-grade bearing steel.

• Sealing Effectiveness:

• Assess sealing quality, particularly for outdoor or harsh-environment applications, as inadequate sealing can lead to premature failure.

• Quality Control:

• Evaluate the manufacturer’s quality control practices, including whether each unit undergoes functional testing, noise testing, and dimensional inspection before shipment.

• Customization Options:

• Confirm the availability of modifications such as special mounting interfaces, corrosion-resistant coatings, or specific gear ratios to meet unique design requirements.

Where to Find a High-Quality SE Slew Drive Supplier?

Sourcing a high-quality SE slew drive requires identifying a supplier with proven manufacturing expertise, engineering support capabilities, and a commitment to quality assurance.

• Technical Capabilities:

• Look for a supplier with in-house design and testing capabilities to ensure each drive meets specified performance criteria before delivery.

• Industry Experience:

• A supplier with experience across diverse industries—from renewable energy to heavy construction—can provide better product recommendations and faster problem resolution.

• Comprehensive Support:

• Evaluate factors such as lead times, warranty terms, and after-sales support alongside product quality.

• Professional Documentation:

• A reliable supplier maintains transparent communication and provides comprehensive documentation, including dimensional drawings, load charts, and maintenance manuals.

LyraDrive: High-Quality SE Slew Drive Supplier

Luoyang Slewing Bearing Co., Ltd., operating under the brand LyraDrive, is a professional one-stop slewing device manufacturer specializing in the design, development, custom production, sales, and service of slew drives and slewing bearings. With a focus on engineering excellence and application-specific solutions, LyraDrive provides high-quality and customized slew bearings, slew drives, and gear rings tailored for applications ranging from truck cranes and excavators to manlifts and beyond.

For customers seeking a dependable SE slew drive supplier or requiring technical support for complex rotational motion applications, LyraDrive offers the manufacturing expertise and responsive service necessary to ensure project success. Whether the requirement involves standard configurations or fully customized designs, LyraDrive stands ready to deliver reliable, precisely engineered products backed by comprehensive support.

FAQ of SE Slew Drive

Q: What is the typical lifespan of an SE slew drive?
A: With proper selection, installation, and regular maintenance, an SE slew drive can operate reliably for 10 to 15 years or more, depending on load conditions, duty cycle, and environmental factors.

Q: Is the SE slew drive self-locking?
A: Yes, the worm gear design inherent to SE slew drives typically provides self-locking capability, meaning the output cannot back-drive the input when the system is stationary. This enhances safety in load-holding applications.

Q: Can SE slew drives be used outdoors?
A: Yes, SE slew drives are designed with robust seals and corrosion-resistant housing options, making them suitable for outdoor applications such as solar tracking, aerial lifts, and crane outriggers.

Q: What maintenance does an SE slew drive require?
A: Maintenance primarily consists of periodic lubrication, visual inspection of seals and housing, and checking mounting bolt torque. The frequency depends on operating conditions but is generally minimal compared to open-gear systems.

Q: Can I get a custom SE slew drive for my specific equipment?
A: Yes, reputable manufacturers offer customization options, including modified mounting interfaces, specialized gear ratios, alternative sealing arrangements, and corrosion-resistant coatings to meet unique application requirements.

Q: How do I determine the correct size of SE slew drive for my application?
A: Correct sizing requires evaluating the maximum axial load, radial load, tilting moment, required torque, and rotational speed. It is recommended to consult with an experienced manufacturer like LyraDrive to perform load analysis and select the appropriate model.
