What is the Double Worm Slewing Drive WED14?

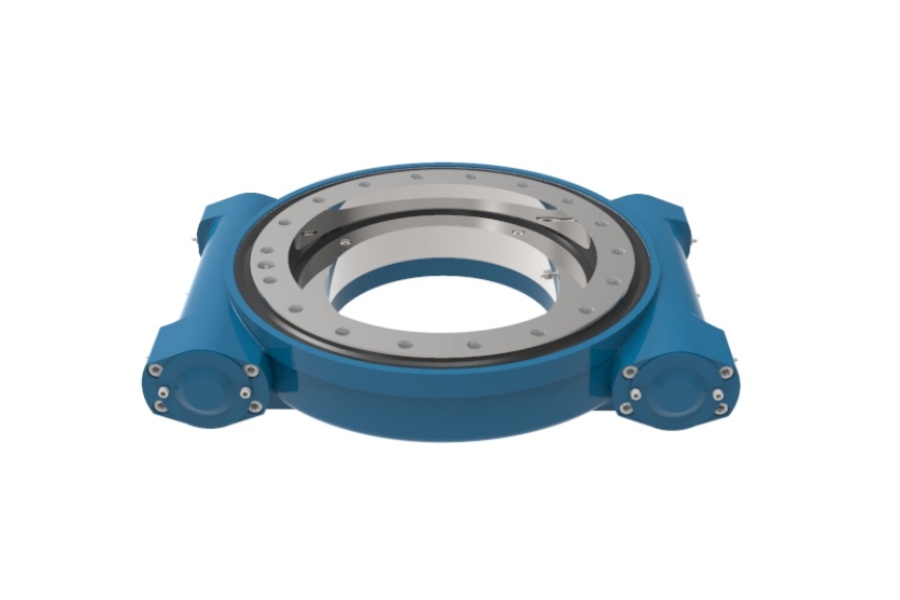

The WED14 represents a significant evolution in rotary drive technology. Unlike conventional single-worm drives, it utilizes two precisely matched worm gears engaging opposite sides of a central worm wheel. This symmetrical configuration fundamentally alters the drive's behavior. The dual worms apply opposing forces, effectively preloading the entire gear mesh. This inherent preload eliminates the traditional clearance or "lash" found in single-worm systems, creating a system of exceptional stiffness and positional accuracy. The WED14 is engineered for heavy-duty applications requiring high torque transmission, moment load capacity, and repeatable positioning, housed within a robust, compact unit designed for direct integration into machinery.

Achieving True Zero-Backlash Performance

The core innovation of the WED14 lies in its ability to deliver and maintain near-zero backlash throughout its operational life. Backlash, the slight angular movement between input and output under load reversal, is the nemesis of precision positioning. In single-worm drives, wear inevitably increases backlash over time, degrading performance. The dual-worm design counters this intrinsically. The opposing preload force means that regardless of the direction of rotation or applied load, one worm is always fully engaged under tension. This constant mesh contact prevents any free play. Crucially, the design compensates for natural wear automatically. As wear occurs on the driving flanks, the preload mechanism ensures the worms maintain tight contact, preserving the critical zero-backlash characteristic far longer than traditional designs, making it ideal for closed-loop servo control systems demanding micron-level accuracy.

Conquering Extreme Conditions: Field Service & Cold Start Prowess

Reliability extends beyond precision; it encompasses resilience under harsh operating conditions. The WED14 is built for demanding environments. Its robust construction and high-quality sealing make it well-suited for field serviceability in industries like mining, construction, or offshore energy. Critical components can often be accessed and replaced on-site, minimizing costly downtime. Furthermore, the WED14 excels in low-temperature applications, a critical factor for Arctic operations, cryogenic environments, or winterized equipment. Conventional lubricants thicken significantly in extreme cold, drastically increasing starting torque and potentially stalling drives. The WED14, often specified with specialized low-temperature greases and optimized internal clearances, demonstrates exceptional Cold Start Torque Retention. This means it maintains a high percentage of its operational torque capacity even at temperatures far below freezing (-30°C / -22°F or lower is typical), ensuring reliable initiation of movement when it matters most, without requiring external heating systems.

The Heartbeat of Precision: Enabling Advanced Wafer Stage Positioning

Perhaps the most demanding proving ground for precision rotary drives is within semiconductor manufacturing equipment, specifically the photolithography wafer stage. This stage must position silicon wafers with nanometer-scale accuracy and repeatability at high speeds during the patterning process. Any vibration, drift, or positional error translates directly into defective chips. The WED14's unique capabilities make it a prime candidate for these critical Wafer Stage Drives. Its inherent rigidity and near-zero backlash provide the stable platform essential for eliminating minute vibrations. The dual-worm design's smooth motion and exceptional torque density allow for the rapid, yet ultra-precise, incremental rotations and fine adjustments required to align wafers perfectly under the lithography lens. Its ability to handle high moment loads while maintaining accuracy under dynamic conditions is paramount in this multi-axis, high-acceleration environment where perfection is non-negotiable.

Unpacking the WED14's Defining Characteristics

The WED14 stands out due to a confluence of meticulously engineered features:

Dual-Worm Symmetry: The foundation for preload, zero-backlash, rigidity, and automatic wear compensation.

Exceptional Rigidity & Load Capacity: Engineered housing and gear geometry provide outstanding resistance to radial, axial, and moment loads, minimizing deflection under stress.

Near-Zero Backlash: Maintained consistently over an extended operational lifespan, crucial for precision positioning.

High Torque Density: Delivers substantial torque output relative to its compact size.

Superior Repeatability: Provides highly accurate and consistent return to position.

Robust Construction: Manufactured from high-strength materials with precision grinding and hardening for durability.

Optimized Lubrication: Designed for long service intervals and performance across a wide temperature range, including specialized low-temp options.

Smooth Operation: The preloaded dual-worm mesh ensures quiet running and minimal vibration transmission.

Integrated Design: Often incorporates mounting flanges, output shaft configurations, and sealing as a complete unit.

Where the WED14 Powers Innovation: Diverse Applications

The unique blend of power, precision, and durability makes the WED14 indispensable across numerous sectors:

Semiconductor Manufacturing: Precision wafer handling, inspection stages, and alignment turntables within photolithography and metrology tools.

Industrial Automation: High-accuracy robotic rotary joints, precision indexing tables, automated assembly stations, and CNC rotary axes.

Medical & Laboratory Equipment: Imaging devices (CT/PET scanners), advanced microscopy stages, and precision sample manipulators.

Defense & Aerospace: Radar and satellite communication antenna positioning, weapon system turrets, and optical tracking platforms demanding rugged reliability.

Heavy Machinery: Crane slewing rings, excavator attachments, mining equipment positioning, and offshore platform deck machinery requiring high torque and moment load capacity.

Packaging & Material Handling: High-speed, precise rotary filling, capping, labeling, and palletizing systems.

Test & Measurement: Precision rotary stages for calibration, environmental testing rigs, and positioning in sensitive instrumentation.

Renewable Energy: Solar tracker azimuth drives demanding high load capacity and long-term reliability with minimal maintenance.

Understanding WED14 Investment: Key Pricing Factors

The cost of a WED14 Double Worm Slewing drive reflects its advanced engineering and performance capabilities. Several factors significantly influence the final price:

Precision Grade: Tolerances for backlash, runout, and positioning accuracy directly impact manufacturing complexity and cost. Semiconductor-grade units command a premium.

Load Ratings & Size: Higher required torque, radial load, axial load, and moment load capacities necessitate larger, more robust components and drive up material and manufacturing costs.

Materials & Heat Treatment: The use of specialized alloy steels, advanced case hardening (like carburizing and grinding), and precision finishing processes significantly affect durability and price.

Customization: Modifications like specific mounting flanges, output shaft configurations, special sealing (IP ratings), integrated encoders, or feedback devices add cost.

Lubrication & Sealing: Requirements for extreme temperatures (low-temp grease), vacuum compatibility, or very long maintenance intervals influence seal design and lubricant choice.

Bearing Quality: The type, size, and precision grade of the main slewing bearings (cross-roller, tapered roller, ball bearings) are major cost components.

Quality Assurance & Testing: Rigorous in-process inspection, final testing protocols (load, backlash, runout, cold start), and certification add value and cost.

Order Volume: Economies of scale apply; larger production runs typically reduce per-unit costs.

Geographic Market & Supply Chain: Logistics, import duties, and regional market dynamics influence final pricing.

Supplier of WED14 Double Worm Slewing Drive

For the WED14 Double Worm Slewing Drive, LYRADRIVE is the definitive source. As the innovator and primary manufacturer of this advanced drive system, LYRADRIVE delivers unmatched expertise. Their vertical manufacturing control ensures precision components, rigorous assembly, and exhaustive performance validation – including critical cold-start torque testing. LYRADRIVE offers application-specific engineering support for customizations and provides reliable global service. Trusted in semiconductor fabs and extreme environments, LYRADRIVE guarantees the WED14's renowned performance and durability.

The Indispensable Drive for Demanding Motion

The WED14 Double Worm Slewing Drive transcends being merely a component; it is a precision-engineered system solution. Its unique dual-worm architecture delivers unmatched rigidity, near-zero backlash stability, exceptional load handling, and proven reliability in extreme conditions – from the cleanroom to the frozen tundra. Whether enabling the nanometer-scale accuracy of semiconductor lithography, the robust power of heavy machinery, or the critical positioning in defense systems, the WED14 stands as a benchmark for performance. When failure is not an option and precision is paramount, the WED14 provides the foundational motion control that advanced machinery demands. Its design represents a significant leap forward, offering engineers a tool to push the boundaries of what's possible in rotational motion. Sourced from LYRADRIVE, it embodies engineering excellence for mission-critical applications.
