Slew Drive Body Excessive Vibration Causes and Solutions

Slew Drive Body Excessive Vibration Causes and Solutions

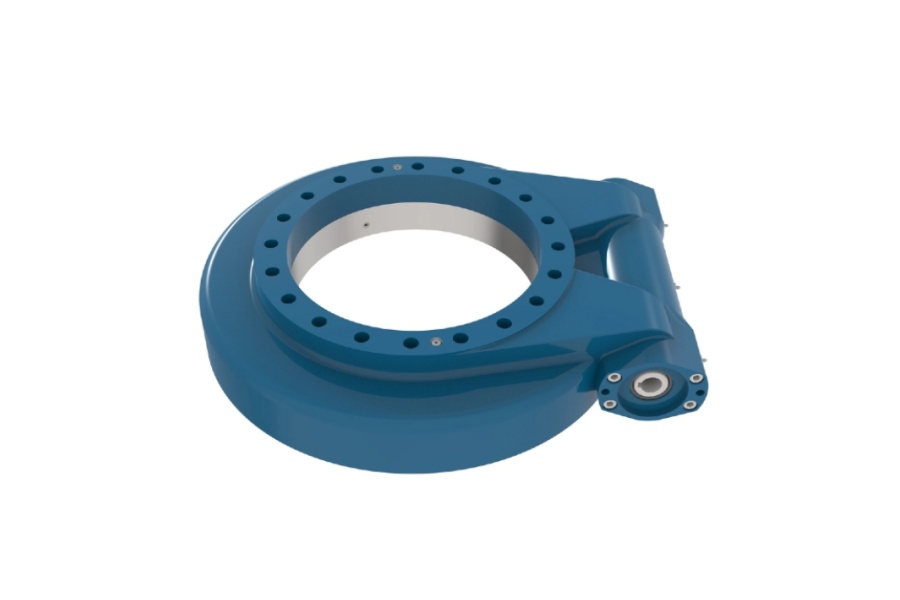

What is Slew Drive

Slew Drive is an integrated gearbox system that combines a slewing bearing with a worm gear or other drive mechanism to facilitate controlled rotational movement under high loads. This compact unit is engineered to handle significant axial, radial, and moment loads simultaneously, converting the high-speed input from an electric or hydraulic motor into slow, powerful rotation. The design eliminates the need for separate mounting of bearings and gearboxes, saving space and enhancing structural integrity. Key to its operation is the precise meshing of gears and the smooth operation of internal components, which are lubricated within a sealed housing to minimize wear. Any disruption to this precision, such as imbalance or component failure, directly manifests as vibration, noise, and reduced performance, making understanding and mitigating vibration critical for optimal functionality.

Reasons for Slew Drive Body Excessive Vibration and Solutions

Excessive vibration in a slew drive is a severe symptom indicating internal or external problems that require immediate attention. Unchecked vibration accelerates wear, leads to structural damage, and can cause complete system failure. Identifying the root cause is essential for implementing the correct solution.

Causes:

Loose connecting screws between the slew drive and the main body: The foundation bolts or screws that secure the slew drive to the machine's frame or structure can loosen over time due to operational vibrations and dynamic loads. This creates a lack of rigidity, allowing the entire unit to shake and vibrate excessively during operation.

Loose motor screws: The motor that provides the input drive to the slew drive is attached via mounting screws. If these screws become loose, the motor itself can vibrate and misalign. This misalignment is transferred directly into the slew drive, causing irregular forces and significant vibration.

Severely worn bearings: Bearings are crucial for allowing smooth rotation between parts. When they wear out, their rolling elements (balls or rollers) and races become pitted, scratched, or deformed. This damage creates friction, irregular rotation, and noticeable grinding or rumbling vibrations that intensify with load and speed.

Gear damage: The worm and gear teeth are subject to immense pressure. Damage such as chipping, pitting, scoring, or total tooth breakage disrupts the smooth transfer of motion. As the damaged tooth meshes, it causes a jarring impact, resulting in pronounced knocking or jerking vibrations with each revolution.

Bent or deformed shaft: The input or output shaft can become bent due to accidental impacts, severe overloads, or material fatigue. A bent shaft rotates off its true center, creating a strong inherent imbalance that generates powerful, rhythmic vibrations synchronous with the shaft's rotation speed.

Solutions:

Tighten foundation bolts and screws: Implement a regular preventive maintenance schedule to check and re-tighten all the fasteners connecting the slew drive to the host machine and the motor to the slew drive. Use a torque wrench to ensure they are tightened to the manufacturer's specified values. Using thread-locking adhesive can prevent them from loosening again.

Replace worn bearings: If diagnosis points to bearing failure, the slew drive must be disassembled. The old, damaged bearings need to be removed and replaced with new, high-quality bearings that meet exact OEM specifications. Proper installation and alignment are critical to prevent premature failure of the new bearings.

Replace damaged gears: Significant gear damage necessitates replacement. The damaged worm and gear set must be replaced as a matched pair to ensure perfect meshing and smooth operation. After replacement, the unit must be properly lubricated and run-in according to the manufacturer's guidelines.

Repair or replace bent shafts: A bent shaft must be identified through precise dial indicator measurements. Depending on the severity of the bend, the shaft may be straightened by a specialist, though often, replacement with a new shaft is the more reliable and safer option to restore perfect balance.

Implement a vibration monitoring program: For critical applications, using vibration analysis tools can help detect the early signs of imbalance, bearing wear, or misalignment before they become severe problems, allowing for planned corrective maintenance.

Characteristics of Slew Drive

Slew drives are defined by several key characteristics that make them ideal for heavy-duty applications. Their most notable feature is their high torque output and compact, integrated design, which combines multiple functions into a single robust unit, saving space and weight. They are engineered for exceptional load-bearing capacity, simultaneously managing axial, radial, and moment loads with high stability. Many slew drives, particularly those using worm gears, offer a self-locking feature, which prevents back-driving and provides inherent safety by holding loads in position without needing an external brake. They deliver precise positioning and control, enabling smooth, slow rotation and accurate movement for applications requiring meticulous alignment. Durability and resilience are core to their construction, with components made from high-strength, hardened steels and housed in rigid casings to perform reliably in harsh environments, from construction sites to industrial plants. Finally, they are designed for ease of installation and maintenance, featuring standardized mounting interfaces and accessible lubrication points to simplify integration and upkeep.

Applications of Slew Drive

The unique capabilities of slew drives make them indispensable across a wide range of industries. In the renewable energy sector, they are the critical component in solar trackers, adjusting panels to follow the sun, and in wind turbines for pitch and yaw control. The construction and material handling industry relies on them for the rotational movement of cranes, excavators, aerial work platforms, and trenchers, where they provide the power to swing booms and lift heavy loads. Within industrial automation, slew drives are used in robotic welding cells, heavy-duty indexing tables, and automated assembly lines to provide precise rotational positioning. The aerospace and defense sectors utilize them in radar systems, satellite communication dishes, and weapon mounts for accurate targeting and tracking. The medical field also employs compact, high-precision slew drives in advanced equipment like CT and MRI scanners.

Factors Influencing the Price of Slew Drive

The cost of a slew drive is influenced by a combination of engineering, manufacturing, and market factors. Primarily, the size, capacity, and design complexity are the biggest determinants; a larger drive rated for higher loads will cost significantly more than a smaller, low-capacity unit. The choice of materials and manufacturing precision also greatly impact price; components made from high-grade alloy steels, subjected to case hardening and precision grinding, involve higher costs but offer superior performance and longevity. The type of gearing (e.g., standard worm gear vs. helical gear) and the gear ratio affect complexity and price. Additional features and customization, such as integrated hydraulic or electric motors, special seals for extreme environments, brakes, or sensors, add to the overall cost. Finally, brand reputation, warranty, volume of order, and after-sales support contribute to the price, with established manufacturers like LYRADRIVE often commanding a premium for their proven reliability and technical support.

Supplier of Slew Drive

For those seeking reliable and high-performance slew drive solutions, LYRADRIVE stands as a reputable manufacturer and global supplier. The company specializes in the design and production of a comprehensive range of slew drives and slewing bearings, engineered to meet the rigorous demands of various industries, including construction, renewable energy, and industrial automation. LYRADRIVE is committed to quality, utilizing advanced manufacturing processes and stringent quality control to ensure its products deliver durability, precision, and long-term operational efficiency. They offer both standard and customized solutions, providing clients with options that fit specific application requirements, load capacities, and environmental conditions. By focusing on technical excellence and customer-centric support, LYRADRIVE aims to be a trusted partner for businesses that depend on robust and efficient rotational drive technology.
