An Introduction to Common Rolling Elements in Slewing Bearings

An Introduction to Common Rolling Elements in Slewing Bearings

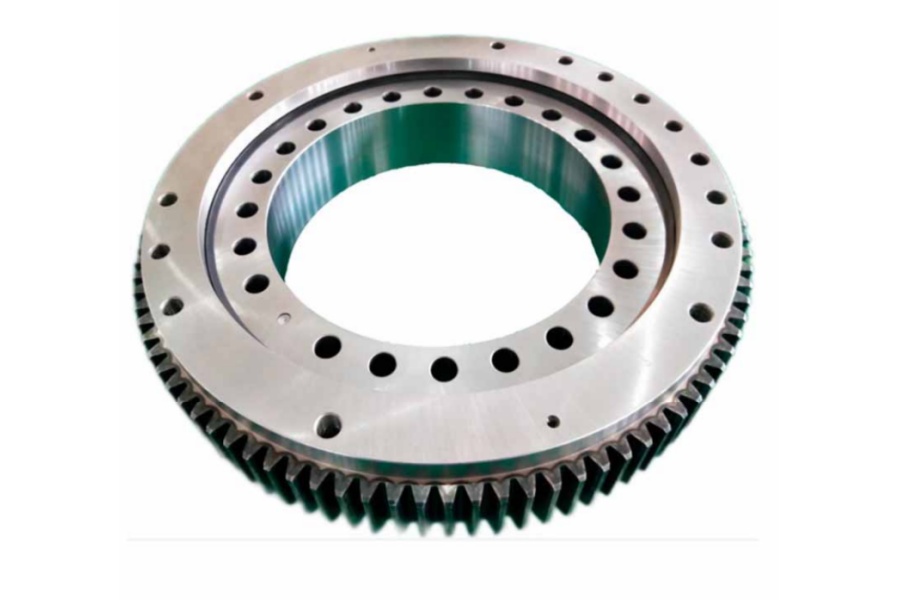

What is Slewing Bearing

Slewing Bearing is a large-scale rotational rolling-element bearing that is fundamental to modern industrial machinery, uniquely engineered to support exceptionally heavy combined loads—axial, radial, and moment loads—while facilitating smooth and controlled 360-degree rotation between two structures. Unlike conventional bearings that are merely components within a system, slewing rings are integral structural elements that form a direct and critical connection between a machine's upper superstructure, such as a crane boom or excavator house, and its lower chassis or base. Their construction is characterized by a robust, compact design featuring two solid rings with precision-machined raceways that accommodate and guide the rolling elements. These elements are the fundamental components that enable the bearing's rotational motion by reducing friction between the rings. A quintessential feature of many slewing bearings is the inclusion of an integrated gear, meticulously machined onto either the inner or outer ring, which meshes with a pinion to create a highly efficient and compact drive system for powered rotational movement. Furthermore, advanced sealing systems are paramount, acting as a primary defense mechanism to protect the internal rolling contact surfaces from invasive contaminants like dirt, abrasive dust, and moisture, thereby ensuring long-term reliability and consistent performance. This unparalleled versatility in managing complex load scenarios within a single, self-contained unit makes them indispensable components across a vast spectrum of industries, from heavy construction and renewable energy to advanced medical imaging and defense systems.

An Introduction to Common Rolling Elements in Slewing Bearings

The rolling elements are the heart of any slewing bearing, serving as the critical components that transmit load between the rings while minimizing friction through their rolling motion. The selection of the appropriate type, size, and material of rolling element is a fundamental engineering decision that directly dictates the bearing's load capacity, operational smoothness, and overall service life. The two primary categories of rolling elements used in slewing bearings are balls and rollers, each offering distinct advantages and being chosen based on specific application requirements.

Balls, or Rolls, are the most common and versatile type of rolling element. Their primary advantage lies in their point contact with the raceways, which allows for very smooth and low-friction rotation, making them ideal for applications requiring higher speeds and precise movement. The vast majority of slewing bearings utilize balls made from high-carbon chromium bearing steel, such as GCr15 (AISI 52100), due to its excellent combination of hardness, wear resistance, and ability to be heat treated to achieve a hard surface and a tough core. The manufacturing process for these precision balls is extensive and rigorous, involving steps like cold heading to form a spherical shape, flash removal, heat treatment (hardening and tempering) to achieve the required hardness, and then a series of grinding and lapping processes to achieve a perfectly spherical form with a super-finished surface. For corrosive environments, such as in marine applications or the food and beverage industry, balls made from martensitic stainless steel (e.g., AISI 440C) are employed. In specialized cases where electrical insulation, non-magnetic properties, or extreme corrosion resistance are needed, ceramic balls (often made from silicon nitride, Si3N4) are used, albeit at a significantly higher cost.

Rollers, specifically cylindrical rollers, are selected for applications where pure radial load capacity is the paramount concern. Their line contact with the raceways provides a much larger load-bearing area compared to the point contact of balls, enabling them to support substantially heavier loads without deforming. This makes them the preferred choice for the most demanding applications in heavy machinery, such as the main bearings for large-diameter tunnel boring machines or the swing circles of giant mining excavators. The manufacturing process for cylindrical rollers is similarly precise, involving precision turning, heat treatment to achieve core toughness and surface hardness, followed by centerless grinding to achieve exact dimensional accuracy and a superior surface finish. While less common than cylindrical rollers, other types like tapered rollers (for managing combined axial and radial loads simultaneously) or spherical rollers (for accommodating misalignment) can be found in specialized slewing bearing designs. The quality of both balls and rollers is non-negotiable; any deviation from perfect geometry, surface imperfections, or inconsistent material hardness will lead to increased vibration, noise, stress concentrations, and ultimately, premature bearing failure through spalling or fatigue. Therefore, sourcing these critical components from reputable manufacturers with stringent quality control is essential for producing a reliable and high-performance slewing bearing.

Characteristics of Slewing Bearing

Slewing bearings are defined by a unique set of engineering characteristics that fundamentally differentiate them from standard bearings and qualify them for their role as both a rotational component and a structural element. Their most critical characteristic is their unparalleled capacity to handle complex combined loads. A single, compact slewing bearing is specifically designed to simultaneously support massive axial forces (parallel to the axis of rotation), radial forces (perpendicular to the axis), and tilting moment loads (which create a overturning force), a capability that would otherwise require a complex and space-consuming system of multiple conventional bearings. This multifunctional load-handling ability is the cornerstone of their design, simplifying machine architecture, reducing the number of parts, and enhancing overall structural integrity and stiffness.

Another defining feature is their integrated and customizable design philosophy. Beyond merely providing raceways for rolling elements, slewing bearings are engineered as complete system solutions. The most common integration is a precision-machined gear, either on the inner or outer ring, which transforms the bearing into a compact and highly efficient rotational drive mechanism. They also feature mounting holes drilled and tapped directly into the rings, facilitating direct bolting to adjacent structures and eliminating the need for additional, costly housings. Advanced sealing systems are integral, typically consisting of multi-lip elastomeric seals or labyrinth paths to provide maximum protection for the internal components against harsh environmental contaminants like dirt, mud, and water. Furthermore, they are pre-fitted with lubrication fittings (grease nipples) and often internal channels to ensure the rolling elements and gear teeth are consistently and adequately lubricated throughout their long service life.

Durability and longevity are engineered into their core from the material level upwards. Manufactured from high-quality, high-carbon chromium steel (e.g., 42CrMo4, 50Mn) and subjected to rigorous heat treatment processes like induction or flame hardening, the raceways and gear teeth achieve a extremely hard, wear-resistant surface while retaining a tough, shock-absorbing core. This ensures exceptional resistance to fatigue, pitting, and brinelling, even under heavy, cyclical, and shock loading conditions. Furthermore, their design allows for immense versatility in size and customization. Slewing bearings are produced in a vast range of diameters, from a few hundred millimeters to over ten meters, and can be customized with specific seal types, gear geometries, hardening patterns, and hole configurations to meet the exact requirements of virtually any application, making them a highly adaptable and critical engineering solution.

Applications of Slewing Bearing

The application of slewing bearings is virtually ubiquitous in any heavy-duty machinery that requires robust, controlled rotation under significant load. They are the fundamental enablers of movement in heavy industries, forming the rotational heart of countless machines. In the construction, mining, and agricultural sectors, they are the core component that allows an excavator's upper house to rotate 360 degrees, enables the boom of a mobile crane to lift and slew, and forms the base for crawler cranes. They are also essential in tunnel boring machines, concrete pump trucks, and heavy-duty tractors.

The renewable energy sector is a major and rapidly growing application field. Slewing bearings are absolutely critical in the yaw systems of wind turbines, responsible for accurately positioning the massive nacelle to face the wind, and in the pitch systems, adjusting the angle of the blades for optimal power generation and storm protection. In solar power generation, they are the key component in solar tracking systems, allowing vast arrays of photovoltaic panels to precisely follow the sun's path across the sky, significantly increasing energy yield.

In industrial material handling, they are essential for port efficiency and automation, operating in the massive stacking and reclaiming machines at shipping terminals and in the deck cranes that load and unload container ships. They are found in rotary conveyors, the turntables of forklifts, and automated warehousing systems. The defense and aerospace sectors utilize high-precision, ultra-reliable slewing rings in radar and surveillance antennae for accurate positioning and tracking, in tank turrets for weapon aiming and stability, and in missile launch system platforms.

The medical industry relies on specially designed, high-precision, and often cleanroom-compatible slewing bearings for advanced diagnostic equipment such as CT scanners and MRI machines, where they enable the smooth, quiet, and precise rotation of heavy imaging gantries around the patient. Finally, they are found in a multitude of other industrial machines, including robotic welders and assemblers, indexing tables on CNC machining centers, packaging equipment, and even in large-scale industrial rotators and positioners. This immense diversity underscores their role as a critical, unsung hero in global industry and technology.

Factors Influencing the Price of Slewing Bearing

The price of a slewing bearing is not a simple figure but is determined by a complex interplay of technical specifications, material choices, manufacturing processes, and commercial factors. Understanding these variables is crucial for making informed procurement decisions and evaluating the true value of a component. The single largest cost driver is often the raw material. The type, grade, and quantity of steel required have a direct and significant impact on the final price. Standard carbon chromium steel (e.g., 42CrMo4) is common, but applications requiring enhanced corrosion resistance, such as in marine environments, necessitate the use of stainless steel (e.g., SS304, SS440C), which will see a substantial price increase due to the more expensive base material and its more difficult machining and heat treatment properties. The physical dimensions—primarily the diameter, but also the width and cross-sectional height—directly scale the material cost and weight.

The complexity of the manufacturing process and the level of customization are another major determinant of cost. A standard, off-the-shelf bearing will be far less expensive than a fully customized one. Customizations such as integrated gearing (including the gear type, module, precision grade, and its location), special sealing arrangements (multiple layers, specific elastomer compounds for extreme temperatures), unique mounting hole patterns, and special surface coatings (e.g., zinc plating, black oxide) all add significant steps, specialized tooling, and time to the production process, increasing the manufacturing overhead.

The required precision tolerance grade and performance specifications dramatically influence the price. A bearing manufactured to standard industrial tolerances for a digger arm is cost-effective. However, one produced to ultra-precise, micron-level tolerances for a medical CT scanner or a military radar, requiring 100% non-destructive testing (NDT) like magnetic particle or ultrasonic inspection, full material traceability with 3.1 mill certificates, and extended fatigue life testing, will command a premium price due to the extensive additional labor, slower production pace, and advanced quality assurance protocols involved.

The quantity ordered is a fundamental economic factor governed by economies of scale. Large volume production runs allow the manufacturer to amortize fixed costs (like custom tooling setup, CNC programming, and first-article inspection) over many units, drastically reducing the price per bearing. A one-off prototype or a small batch order will have a significantly higher unit cost to cover these fixed expenses. Finally, external supply chain factors like global fluctuations in steel prices, international logistics and shipping costs, and import/export tariffs and duties can also cause fluctuations in the final price offered to the customer, making the total landed cost a key consideration.

Supplier of Slewing Bearing

For engineers and procurement specialists seeking a reliable source for high-performance slewing bearings, LYRADRIVE stands as a manufacturer with deep expertise in the engineering and production of these critical components. The company's technical proficiency extends to a fundamental understanding of core elements like rolling body selection, ensuring that each bearing is equipped with the highest quality balls or rollers—meticulously manufactured from appropriate materials and subjected to rigorous inspection—to guarantee optimal load capacity, smooth operation, and extended service life. This focus on precision engineering and robust quality control is supported by a comprehensive manufacturing system that governs every stage of production. By offering this combination of advanced capabilities, engineering-led problem-solving, and a commitment to delivering durable and reliable products, LYRADRIVE has established itself as a trusted partner for a global clientele across diverse industries such as construction, renewable energy, material handling, and specialized machinery.
