Heavy-duty Slew Drive WEA9 is a heavy-duty slewing drive mainly used in industrial automation slewing, aerial work platform slewing, truck cranes, mining drilling machines, rock drills, etc. It is also widely used in some special equipment, such as the tire steering slewing drive of beam transport vehicles and the tire steering slewing drive of gantry cranes.
Output Torque (Max.): 8KN.m
Gear Ratio: 62:1
Tilting Moment Torque (Max.): 35.6KN.m
Self-locking Gears: Yes
Holding Torque: 38.7KN.m
Backlash: ≤0.15°
Weight: 48Kg
Overview of Heavy-duty Slew Drive WEA9
The WEA9 slewing drive is an integrated transmission unit featuring key components like a worm gear, worm shaft, and housing. With all moving parts fully enclosed within the housing, this design effectively extends the product's service life and reduces maintenance frequency.
Features of Heavy-duty Slew Drive WEA9
Designed for high performance, the WEA9 slewing drive excels in managing complex load combinations, including axial and tilting forces. The integrated worm gear system ensures a self-locking mechanism for added security in various industrial tasks. Engineered for durability, this drive supports multiple sealing options - from lip to double-skeleton oil seals - reaching an IP65 standard that thrives in the most rugged outdoor conditions.

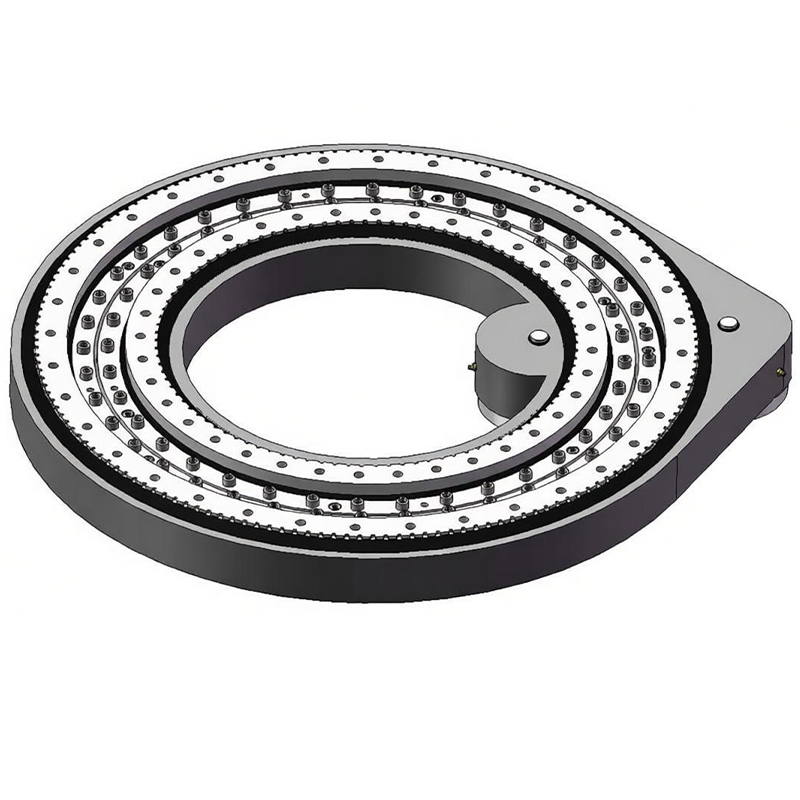

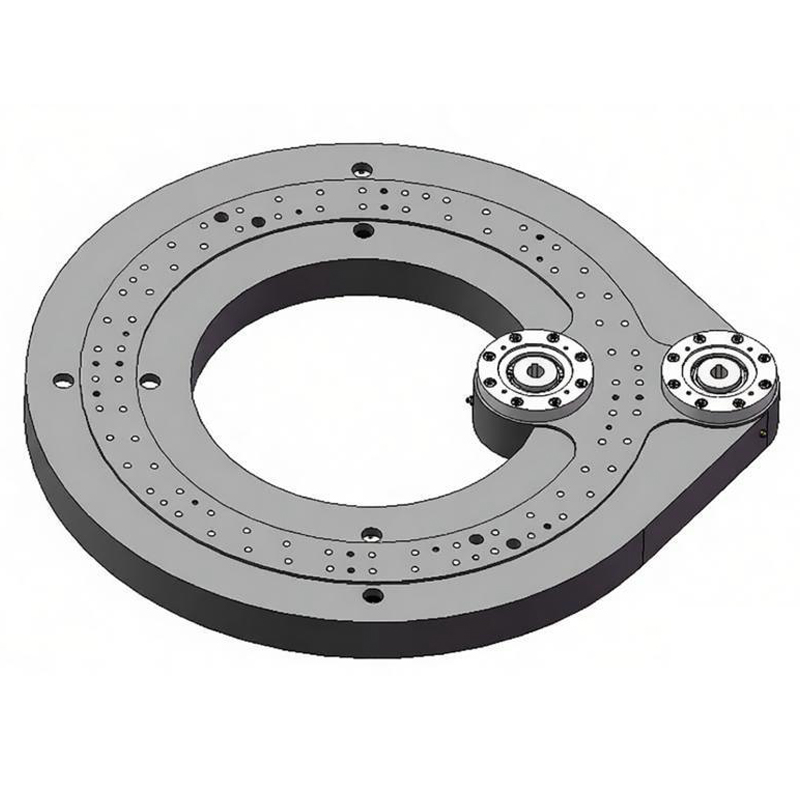

Customized Slew Drive According to Your Request
Lyradrive is a professional slew drive manufacturer providing cost-efficient and high-quality solutions across rotary applications. Our team is here to help you to design and produce slew drives for your unique application. We’re prepared to work with your team, understand your requirements, tailor our products to meet your specific needs, and ensure you receive top-notch and robust products. We walk the walk with our customers as partners and follow through with all the necessary information to satisfy your requirements.
Applications of Customized Slew Drive
Customized slew drive maybe applied to any conditions according to the customer's request. Our team will discuss the working conditions and requirements via email or online meeting. After that, we will provide slew drive design solution and drawings for your reference. If the design has been confirmed, we will arrange slew drive manufacturing.
Instock and Custom Slew Drive Manufacturer
Contact Lyradrive to request a design or an in-stock slew drive. If the slew drive is in stock, it will be shipped shortly. Lyradrive offers a comprehensive range of in-stock products to meet your OEM requirements. While we maintain a robust inventory of standard slew drives, rings, and hydraulic swivels, we also specialize in bespoke engineering solutions tailored to your specific needs.
We understand that optimal performance often requires more than an 'off-the-shelf' solution. To support your unique OEM designs, we offer a variety of customizations, including left- and right-hand drive configurations and specialized motor output shaft dimensions. Our slew rings can be designed with or without gear teeth to match your application's requirements. Additionally, for our turnkey hydraulic swivels, we can accommodate a wide array of fluid ports and hose fittings to ensure seamless integration.
| Technical Parameter | Value |
|---|---|
| Output Torque (Max.) | 8 kN.m |
| Tilting Moment Torque (Max.) | 35.6 kN.m |
| Holding Torque | 38.7 kN.m |
| Axial Load (Max.) | 578 kN |
| Radial Load (Max.) | 215 kN |
| Gear Ratio | 62:1 |
| Self-locking Gears | Yes |
| Backlash | ≤0.15° |
| Suggested Speed | ≤2rpm |
| Weight | 48 kg |
Input interfaces and specific dimensions are customizable upon request.
