SP-I Slew Drive

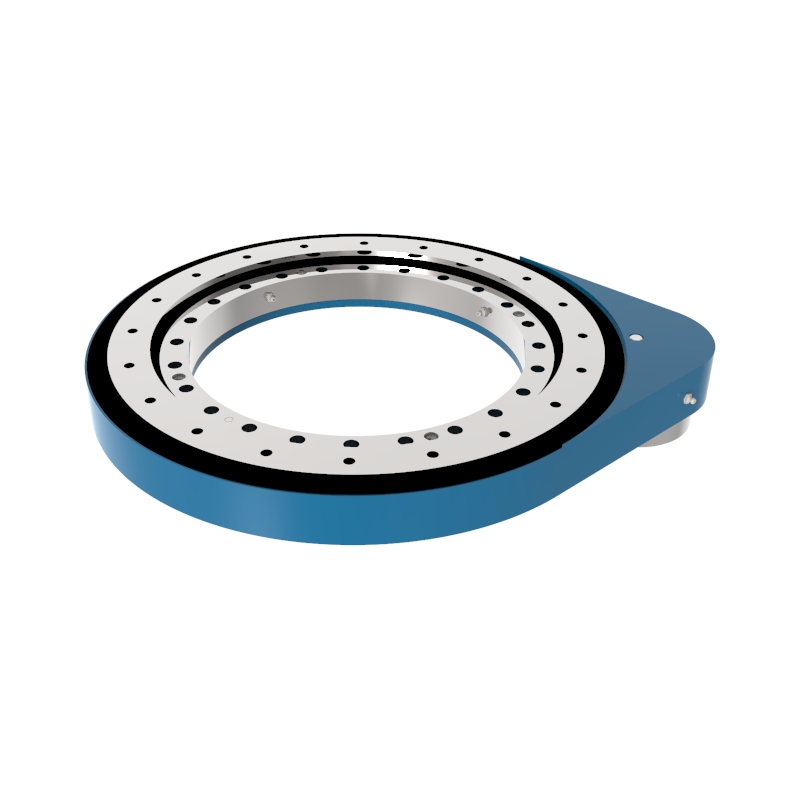

Lightweight Slewing Ring Gear Drive SP-I 0411
SP-I 0411 gear slewing drive is a highly efficient gear reduction transmission device, which is widely used in the automatic slewing of industrial machinery, especially in the occasions that require high precision and high speed. The product consists of two or more spur gears or helical gears with different numbers of teeth. These gears are precisely processed and assembled, and can be effectively positioned through the base to ensure the stability of the product. While realizing the efficient deceleration function, it simplifies the mechanical structure and reduces the difficulty of installation.
Looking for a high-speed, heavy-duty slewing drive that delivers performance, durability, and precision in one integrated system? Meet the SP-I 0411 Lightweight Slewing Ring Gear Drive—an IP65-rated external gear slewing drive designed for mobile machinery, automation platforms, and harsh outdoor conditions.
Module: 4 mm
Teeth number of wheel: 126 (Symbol: Z2)
Teeth number of pinion: 15 (Symbol: Z1)
Gear ratio: 8.4 (Symbol: i)
Max torque: 4450 Newton-meters (Symbol: Md max)
Description
What Is SP-I 0411 Slewing Drive?
The SP-I 0411 is a compact slewing ring gear drive built with a high-performance slewing bearing at its core. It combines rotation, load support, and reduction in one unit, making it a robust alternative to traditional turntable bearing systems. This model features a pre-set 8.40:1 reduction ratio and supports both hydraulic and electric motor inputs.
Its fully enclosed housing protects critical components from dust, rain, and temperature extremes. Designed for low-speed, high-torque rotary motion, it performs reliably in construction machinery, automated equipment, and heavy-duty transport systems.
Key Features
✔ Core slewing bearing design – Ensures smooth rotation under load and high-speed conditions
✔ IP65-rated sealing – All-weather operation, dustproof and rainproof
✔ Hydraulic or electric motor compatibility – Flexible integration
✔ Factory-filled with Mobil EP2 grease – Plug & play, no commissioning required
✔ Speeds up to 30 RPM – Ideal for continuous or semi-continuous motion
✔ Interchangeable with IMO SP-I 0411 – Direct replacement, globally compatible
✔ Compact & maintenance-friendly – Fewer components, longer service life
Typical Applications
The SP-I 0411 slewing drive is widely used in:
Aerial work platforms
Construction equipment (e.g. cranes, excavators, drills)
Automated assembly or rotation platforms
Mobile robotic arms and track-mounted systems
Off-road vehicles with hydraulic power units
Marine deck equipment and solar trackers
Its all-in-one structure simplifies installation, cuts down system costs, and improves long-term durability.
Easy Installation & Zero Debugging
LYRADRIVE delivers each SP-I 0411 unit:
Pre-assembled
Pre-filled with high-performance Mobil EP2 grease
Precision-matched with your mounting dimensions, motor flange, and shaft input
Just bolt it on, connect your motor, and it’s ready to work—no adjustments, no hassle.
Why Choose LYRADRIVE?
As a trusted slewing drive manufacturer, LYRADRIVE offers:
Over 10,000m² of dedicated production facilities
5000+ units/month capacity
Strict 5S production management
Custom engineering and OEM support
Certified by ISO9001, SGS, BV, CCS
At LYRADRIVE, we don’t just manufacture slewing drives—we engineer tailored motion solutions. Our experienced engineering team precisely machines the drive housings to ensure perfect alignment between the driving and driven ends, allowing for synchronized rotation in dual-drive applications. This level of precision makes LYRADRIVE products ideal for equipment requiring consistent center distances and balanced motion control.
In addition to mechanical excellence, LYRADRIVE provides complete drive system integration. Based on detailed analysis of your working conditions, our team can supply matched components including high-precision planetary reducers, servo motors, and servo drives—all pre-configured and tested to work together. This eliminates the risk of mismatched couplings and adapters, ensuring plug-and-play convenience during installation.
With years of experience in non-standard and custom slewing drive solutions, our engineers specialize in designing according to your unique requirements—whether it’s a custom housing, an offset configuration, or integration with other automation components. LYRADRIVE delivers reliable, application-specific solutions that save time, reduce integration risks, and perform with precision.
Let LYRADRIVE be your engineering partner—transforming your concept into a ready-to-use, high-performance drive system.
Get a Quote Now
Looking to integrate the SP-I 0411 into your next project? Need help choosing the right slewing solution?
Contact LYRADRIVE now — we’ll provide expert advice, technical drawings, and fast lead times to keep your project moving forward.
Item | |||
SP-I 0411 | Sign | Unit | Value |
Module | M | mm | 4 |
Teeth number of wheel | Z2 | － | 126 |
Teeth number of pinion | Z1 | － | 15 |
Gear ratio | i | － | 8.4 |
Max torque | Md max | N.m | 4450 |
Nom torque | Md nom | N.m | 3205 |
Max holding torque | Mh | N.m | 4450 |
Radial static load | Co rad | KN | 265 |
Axial static load | Co ax | KN | 700 |
Radial dynamic load | Crad | KN | 180 |
Axial dynamic load | Cax | KN | 215 |
Weight | W | Kg | 50 |
