SP-I Slew Drive

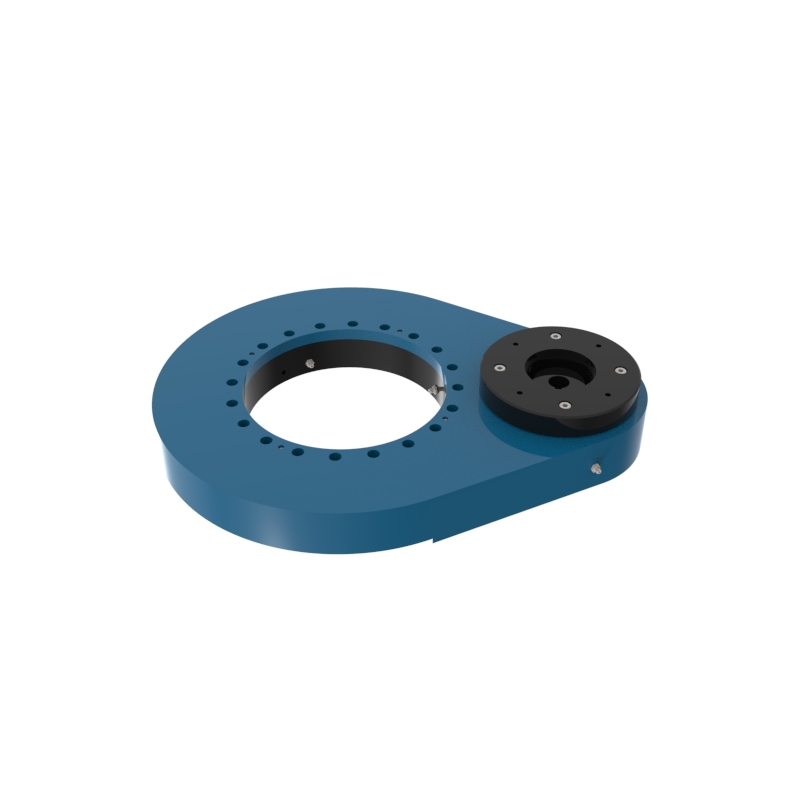

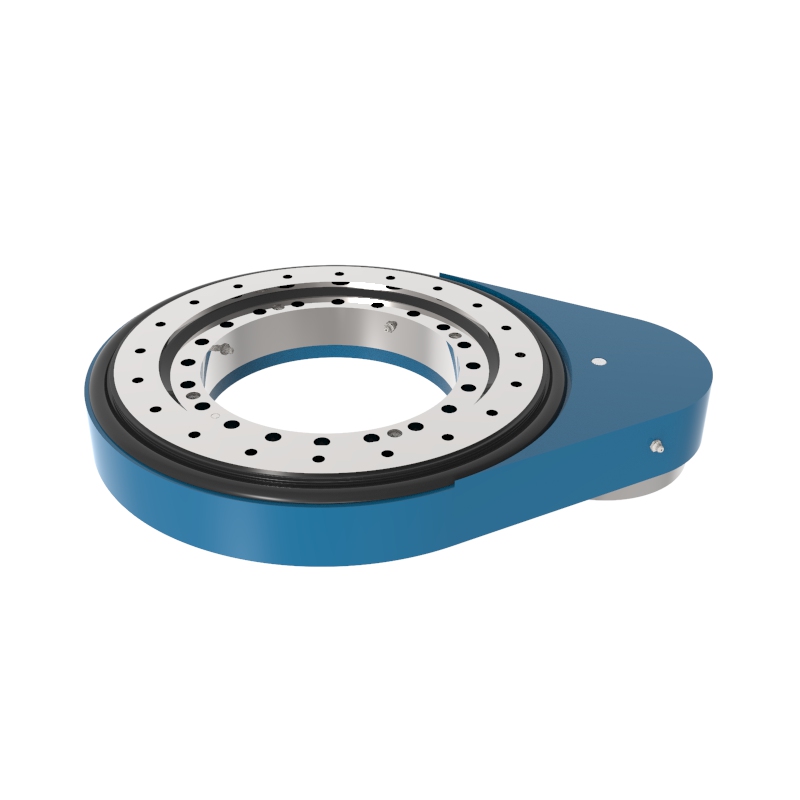

Lightweight Slewing Ring Gear Drive SP-I 0311
SP-I 0311 gear slewing drive is a highly efficient gear reduction transmission device, which is widely used in the automatic slewing of industrial machinery, especially in the occasions that require high precision and high speed. The product consists of two or more spur gears or helical gears with different numbers of teeth. These gears are precisely processed and assembled, and can be effectively positioned through the base to ensure the stability of the product. While realizing the efficient deceleration function, it simplifies the mechanical structure and reduces the difficulty of installation.
The SP-I 0311 slewing drive is a lightweight, compact gear reduction device designed for efficient and precise rotary motion in industrial and mobile applications. Built around a high-performance slewing bearing, it integrates rotation, load support, and gear reduction into a sealed, modular system.
By combining precision-machined spur gears, a robust housing, and smart mechanical integration, the SP-I 0311 simplifies system design while ensuring stability and durability under dynamic loads. Its structure is optimized for high-speed operations, making it ideal for applications that demand compactness and performance reliability.
Module: 4 mm
Teeth number of wheel: 102 (Symbol: Z2)
Teeth number of pinion: 15 (Symbol: Z1)
Gear ratio: 6.8 (Symbol: i)
Max torque: 3580 Newton-meters (Symbol: Md max)
Description
What Is SP-I 0311 Slewing Drive?
The SP-I 0311 is a compact external gear slewing drive with a 6.8:1 gear reduction ratio, offering a powerful solution for high-speed, low-torque rotary systems. It is compatible with both hydraulic and electric motors, allowing flexibility across different environments.
Its IP65-rated sealed housing protects internal components from dust, rain, and debris, enabling reliable performance even in harsh outdoor conditions. The model is interchangeable with IMO SP-I 0311, providing drop-in convenience for system upgrades or replacements.
Key Features
Built-in slewing bearing for high load and speed capability
Integrated 6.8:1 reduction ratio, no need for external gearbox
IP65-rated enclosure for outdoor, all-weather operation
Supports both electric and hydraulic motor inputs
Fully sealed and pre-lubricated with Mobil EP2 grease
Compact, lightweight design for tight installation spaces
Up to 40 RPM operating speed, ideal for fast-moving systems
Interchangeable with IMO SP-I 0311 model
Easy maintenance with extended service intervals
Typical Applications
Aerial work platforms
Compact construction machinery
Light-duty rotary tables and turntables
Industrial automation arms and platforms
Mobile vehicles and robotic systems
Portable radar or sensor platforms
Solar tracking structures requiring fast rotation
Installation and Setup
Delivered pre-assembled and tested
Pre-filled with high-performance Mobil EP2 grease
Custom-matched mounting and motor flanges
No debugging or alignment needed—plug-and-play installation
Why Choose LYRADRIVE
LYRADRIVE engineers design each slewing drive with practical integration in mind. For custom projects, we offer:
Precision-machined housings to match dual-head installation and synchronized movement
Complete system kits including planetary gearboxes, servo motors, and controllers, reducing compatibility risks
Full support for non-standard and asymmetrical slewing drive solutions
Fast response, engineering consultation, and OEM service
Manufacturing advantages:
10,000 m² modern workshop
5,000+ units/month production capacity
ISO9001, SGS, BV, CCS certified
5S lean manufacturing system
Get a Quote
Ready to integrate SP-I 0311 into your application?
Contact LYRADRIVE today for specifications, drawings, and pricing.
Item | |||
SP-I 0311 | Sign | Unit | Value |
Module | M | mm | 4 |
Teeth number of wheel | Z2 | － | 102 |
Teeth number of pinion | Z1 | － | 15 |
Gear ratio | i | － | 6.8 |
Max torque | Md max | N.m | 3580 |
Nom torque | Md nom | N.m | 2540 |
Max holding torque | Mh | N.m | 3580 |
Radial static load | Co rad | KN | 200 |
Axial static load | Co ax | KN | 530 |
Radial dynamic load | Crad | KN | 165 |
Axial dynamic load | Cax | KN | 190 |
Weight | W | Kg | 42 |
