Aerial work platforms (AWPs), often referred to as aerial work vehicles, utilize slew drives to enable precise and controlled rotational movement of the platform or boom. These slew drives are integral to the functionality and safety of aerial work platforms, which include boom lifts, scissor lifts, and cherry pickers. They allow the operator to position the platform or boom at various angles and heights, providing essential maneuverability for tasks at elevated positions.

As a reliable slewing drive manufacturer, LyraDrive is at your service. Our slewing drives are available in a variety of standard designs and sizes. If you are looking for an individual solution, we are happy to develop a custom slewing drive tailored to your requirements.

We offer the different dimension and construction series with straight or helical gearing, with an open or closed structure, as well as with screws and casing.During the manufacturing process, we will select suitable materials based on your specific requirements and actual working conditions.

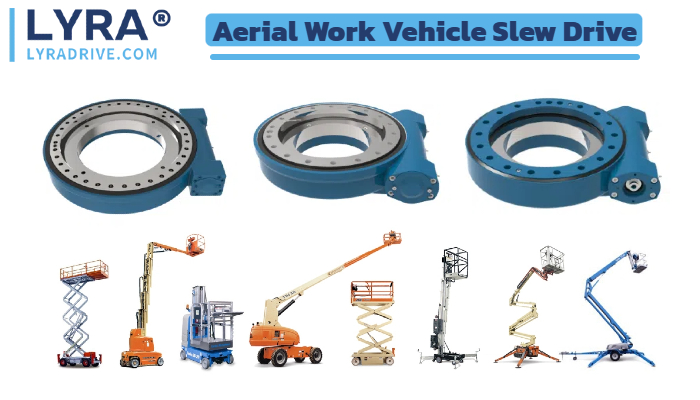

Aerial Work Vehicle Slew Drive

What is Slew Drive?

A slew drive is a ready-to-install unit consisting of a slewing bearing, a drive gear, and a motor (electric or hydraulic), enclosed in a casing. It is designed to handle radial and axial loads with a large tilting moment. The drive gear, typically a worm gear, meshes with the gearing of the slewing bearing, providing rotational motion.

Design Features of Aerial Work Vehicle Slew Drives

Compact and Modular Design: Slew drives are compact and modular, making them easy to integrate into various designs of aerial work platforms.

High Torque Capacity: The worm gearing provides high torque and reduces the speed, allowing for smooth and controlled rotational movements.

Self-locking Mechanism: Many slew drives have a natural self-locking ability, which enhances safety by preventing back-driving in case of power failure.

Precision Control: The design allows for precise control over the movement, crucial for operations where fine adjustments are necessary for positioning.

Integrated Motor and Gearbox: These units often come with an integrated motor and gearbox, simplifying the mechanical complexity and reducing the installation space required.

Advantages of Slew Drives in Aerial Work Vehicles

Enhanced Safety: The self-locking feature ensures that the platform remains stable and secure even when hydraulic or electric power is not available.

Durability: Slew drives are built to withstand harsh environments and continuous operation, making them durable for the rigorous demands of aerial work.

Ease of Maintenance: The modular design simplifies maintenance and replacement processes, as the entire unit can be serviced or replaced without disassembling other components.

Versatility: Slew drives can be used in a variety of configurations and sizes of aerial work platforms, adapting to different load and torque requirements.

Improved Operational Efficiency: Provides smooth and efficient movement, reducing the time and effort required to position the platform or boom.

Common Applications in Aerial Work Vehicles

Rotation of the Work Platform or Boom: Slew drives are primarily used to rotate the work platform or boom in AWPs, allowing operators to reach different areas without moving the base of the vehicle.

Articulation Points: In more complex designs, such as articulated boom lifts, slew drives may also be used at various articulation points to provide additional angles and extensions.

Selection Considerations of Aerial Work Vehicle Slew Drives

Load and Torque Requirements: It's crucial to select a slew drive that can handle the specific load and torque demands of the application, considering both the weight of the platform and its maximum load capacity.

Environmental Conditions: The operating environment can affect material selections and sealing solutions. For instance, operations in dusty or wet conditions require better sealing to protect internal components.

Power Source Compatibility: The choice between electric and hydraulic motors in slew drives depends on the available power sources and operational requirements of the aerial work platform.

Safety Standards: Compliance with safety standards and certifications is crucial, especially given the high-risk nature of working at heights.

Aerial Work Vehicle Slew Drive Cost Analysis

Cost CategoryCost ComponentDescription & DetailsKey Cost Drivers
I. Direct Materials (BOM)Raw Materials (Gear Steel)High-quality carburized alloy steel for rings, gears, and housingsGlobal steel prices, material grade, forging vs. casting
Gearing ComponentsPrecision-cut gear teeth with machining and heat treatmentGear quality, tooth grinding process, precision requirements
Rolling ElementsBearings and raceways made of case-hardened bearing steelBearing type, size, quantity, supplier
Seals & LubricationMulti-lipped seals and high-performance greaseSeal quality, environmental resistance, grease type
Fasteners & HardwareHigh-strength bolts, nuts, and mounting componentsQuantity, grade, corrosion protection
Subtotal Materials~45% - 60% of Total Cost
II. Direct Production CostsMachining & ProcessingCNC machining of components with tight tolerancesPart complexity, tolerances, machining time
Heat TreatmentCarburizing, hardening, tempering processesProcess type, depth of hardness, energy costs
Quality Control & TestingInspection, gear tooth profiling, hardness tests, NDTScope of QA, testing equipment, skilled labor
Assembly & CalibrationManual assembly, pre-load adjustment, functional testingLabor rates, assembly complexity, testing rigs
Subtotal Production~20% - 30% of Total Cost
III. Indirect Costs (Overhead)R&DDesign, prototyping, FEA analysis, fatigue testingCustomization level, testing standards
SG&AOverhead costs: management, sales, marketing, office expensesCompany size, sales channel
Tooling & DepreciationSpecialized fixtures, custom tools, machine depreciationProduction volume, equipment sophistication
Subtotal Overhead~15% - 25% of Total Cost
IV. Other CostsLogistics & PackagingProtective packaging and freight costsUnit weight and size, shipping destination
Warranty & After-SalesWarranty claims, returns, technical supportProduct reliability, MTBF, market reputation
Profit MarginManufacturer's profit for sustainabilityMarket competition, brand value
Total Landed Cost100% (Final Price to Customer)
Note: Cost percentages are approximate and vary based on production volume, customization level, quality tier, and geographic region of manufacture.
